| Place of Origin: | China |
| Brand Name: | xingebin |
| Certification: | ISO9001 |
| Model Number: | R-SDL |
| Minimum Order Quantity: | 500 m2 |
|---|---|
| Price: | USD0.8-2.0 |
| Packaging Details: | pallet |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | USD300 M2/DAY |
| Name: | Galvanized Steel Mesh Fence Panels | Hole Shape: | Square, Long Hole |
|---|---|---|---|
| Material: | Low Carbon Steel | Application: | Floor Heating Wire Mesh |
| Wire Gauge: | 0.5mm-2.5mm | Type: | Welded Mesh |
| Surface Treatment: | Hot Dipped Galvanized | ||
| High Light: | Underfloor Heating Mesh,Galvanised Weld Mesh Panels,Galvanised Weldmesh Panels |
||

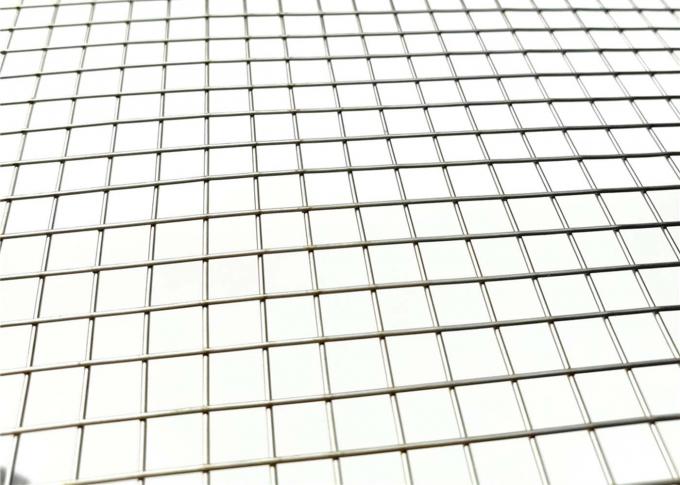

Floor Heating Mesh Hot Dipped Galvanized Wire Mesh Roll And Panel Package
Welded wire mesh roll introduction
Floor heating mesh, also known as geothermal mesh, special mesh for floor heating and steel wire mesh, is made of black iron wire or electro galvanized wire mesh .
Floor heating wire mesh has the characteristics of flat mesh surface, solid solder joints, uniform mesh and convenient transportation.
Welded wire mesh as floor heating mesh
Welded wire mesh has many uses, such as agricultural fences, building materials and floor heating mesh. Today we will introduce floor heating welded wire mesh first
To understand the floor heating welded wire mesh, first understand the material of the floor heating welded wire mesh. The floor heating welded wire mesh is made of black iron wire or modified wire drawing and welding.
It has the characteristics of flat mesh surface, solid welding points, uniform mesh and convenient transportation. The function is to enhance the overall strength of the thermal insulation plate and facilitate the installation and fixing of the heating pipe.
Specification of floor heating mesh welded wire mesh
| Spec. | Wire dia.(MM) | Hole (CM) | Weight (KG) |
| 1M×2M | 2 | 10×10 | 1.06 |
| 1M×2M | 2 | 15×15 | 0.67 |
| 1M×2M | 2 | 20×20 | 0.56 |
| 1M×2M | 2.5 | 10×10 | 1.65 |
| 1M×2M | 2.5 | 15×15 | 1.04 |
| 1M×2M | 2.5 | 20×20 | 0.88 |
| 1M×2M | 3 | 10×10 | 2.38 |
| 1M×2M | 3 | 15×15 | 1.5 |
| 1M×2M | 3 | 20×20 | 1.27 |
The wire diameter of underfloor heating mesh is mostly 1.5~4MM. The thickness of wire diameter determines the quality of the project and the bearing capacity of the ground.
The wire mesh has 5cm * 5cm, 10cm * 10cm, 5cm * 10cm and 6cm * 6cm.
In order to facilitate transportation and construction, the construction of floor heating project uses 1m × 2m mesh, All the products can be customized according to the specific needs of the project.
The advantage of floor heating mesh (welded wire mesh)
The package of the floor heating welded wire mesh
The package of the floor heating welded wire mesh is rolled, and it's easly to unload.
Material is low carbon wire, the surface treatment is hot dipped galvanized, it gets unti-rust resistance.
