| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-3DHLW |
| Minimum Order Quantity: | 100SETS |
|---|---|
| Price: | USD25-48/SET |
| Packaging Details: | PALLET |
| Delivery Time: | 5-8DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500SETS/WEEK |
| Name: | Welded Wire Mesh Fencing | Material: | Galvanized Wire |
|---|---|---|---|
| Hole Shape: | Rectangle | Uses: | Protecting |
| Hole Size: | 50mmx100mm | Color: | Green , White |
| High Light: | Anti Corrosion Welded Mesh Fencing,Railway Welded Mesh Fencing,Welded Metal Mesh Fence |
||

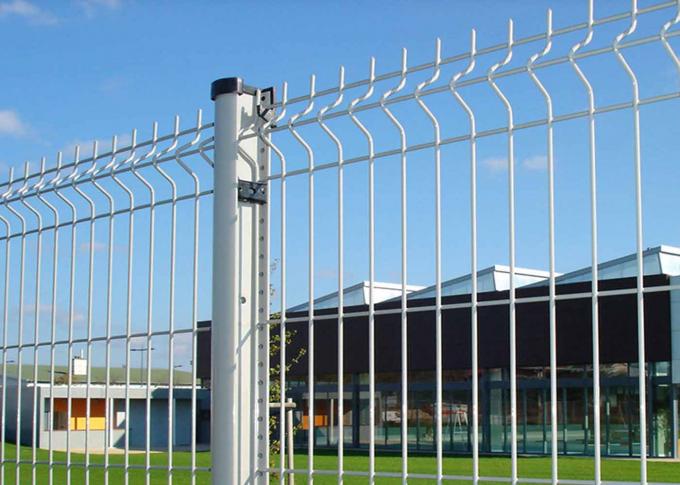

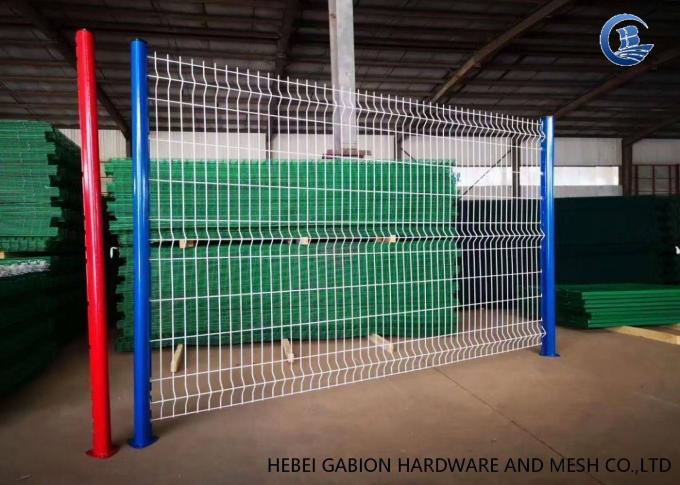

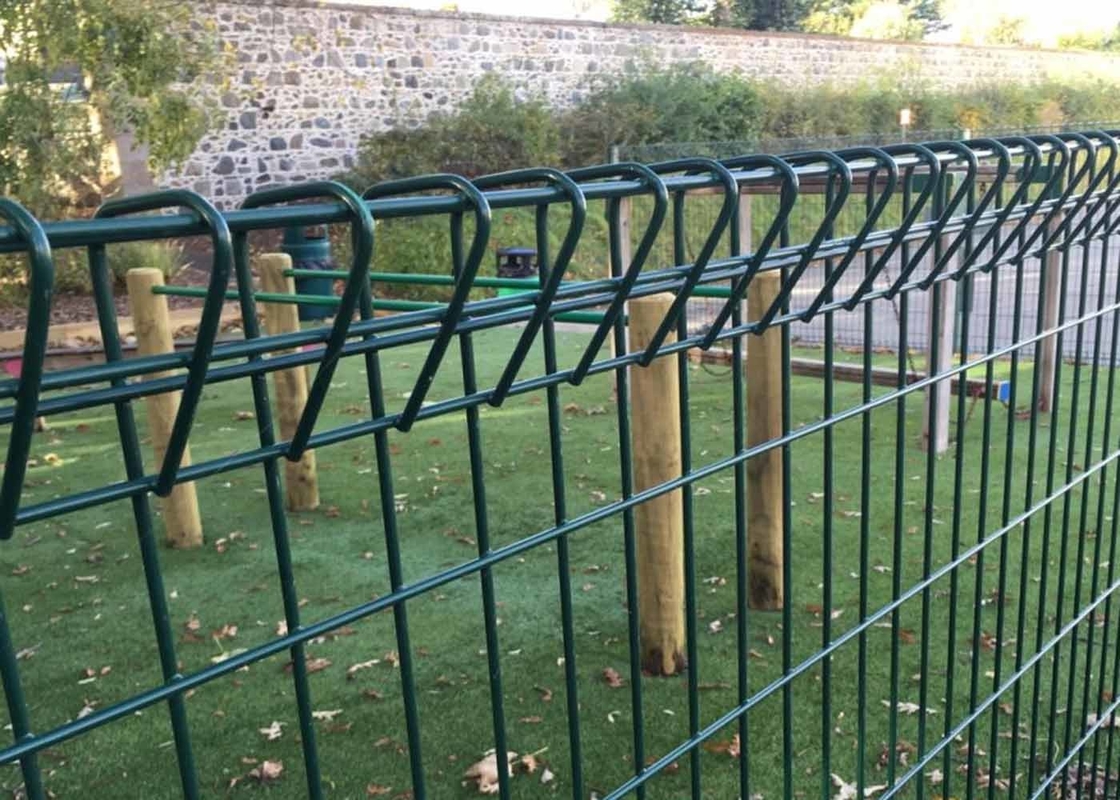

Welded Mesh Security Fencing Fence Panel For School, Airport, Railway
Welded mesh security fencing introduction
Welded mesh security fencing is welded with high-strength cold drawn low-carbon steel wire to form a mesh, and then hydraulically formed, and then fixed with the steel pipe pillar with link accessories.
Advantage of the welded mesh security fencing
The raw material of welded mesh security fencing is welded with high-strength low-carbon steel wire. It has high strength, good rigidity and beautiful appearance.
The surface of the fence is hot-dip galvanized or PVC coated , which can increase the anti-corrosion effect and prolong the service life
The welded wire mesh fence is easy to install. On the construction site, workers only need to link the welded wire mesh and post with bolts, which is very simple.
Welded mesh security fencing specification
| Specification of Triangle Bend Fence | |||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | ||
| 50x100mm | 3.0mm | 2.0m | 630mm | 2 | Round Post | ||
| 50x150mm | or | or | 830mm | 2 | Rectangular Post(RHS) | ||
| 50x200mm | 3.5mm | 2.50m | 1030mm | 2 | 48x1.5/2.0mm | Square Post(SHS) | |
| 55x200mm | or | or | 1230mm | 2 | 60x1.5/2.0mm | 40x60x1.5/2.0mm | |
| 75x150mm | 4.0mm | 2.9m | 1430mm | 2 | 50X50x1.5/2.0mm | 40x80x1.5/2.0mm | |
| etc. | or | 1530mm | 3 | 60x60x1.5/2.0mm | 60x80x1.5/2.0mm | ||
| 4.50mm | 1630mm | 3 | 80x80x1.5/2.0mm | 80x100x1.5/2.0mm | |||
| or | 1730mm | 3 | |||||
| 5.00mm | 1830mm | 3 | |||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | |||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you. | |||||||

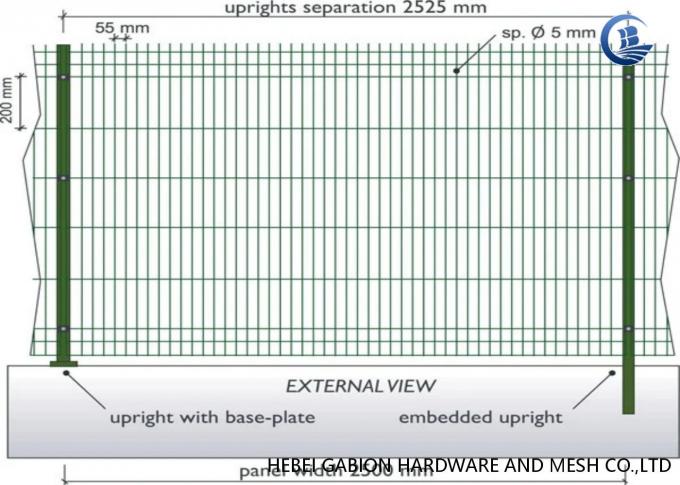

PVC powder coated 3D Fence Panel/3D Curved Fence/3D Curved Fence drawing
