| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-AQFHW |
| Minimum Order Quantity: | 100SETS |
|---|---|
| Price: | USD25-48/SET |
| Packaging Details: | PALLET |
| Delivery Time: | 5-8DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500SETS/WEEK |
| Name: | High Security Mesh Fence | Material: | Galvanized Wire |
|---|---|---|---|
| Hole Shape: | Rectangle | Uses: | Protecting |
| Diameter: | 4.0-5.5mm | Mesh Hole: | 50x100mm |
| Surface Treatment: | PVC Coated, Hot Dipped Galvanized | ||
| High Light: | Security Welded Mesh Fencing,Welded Mesh Fencing 4.0mm,Protecting Wire Mesh Security Fencing |
||

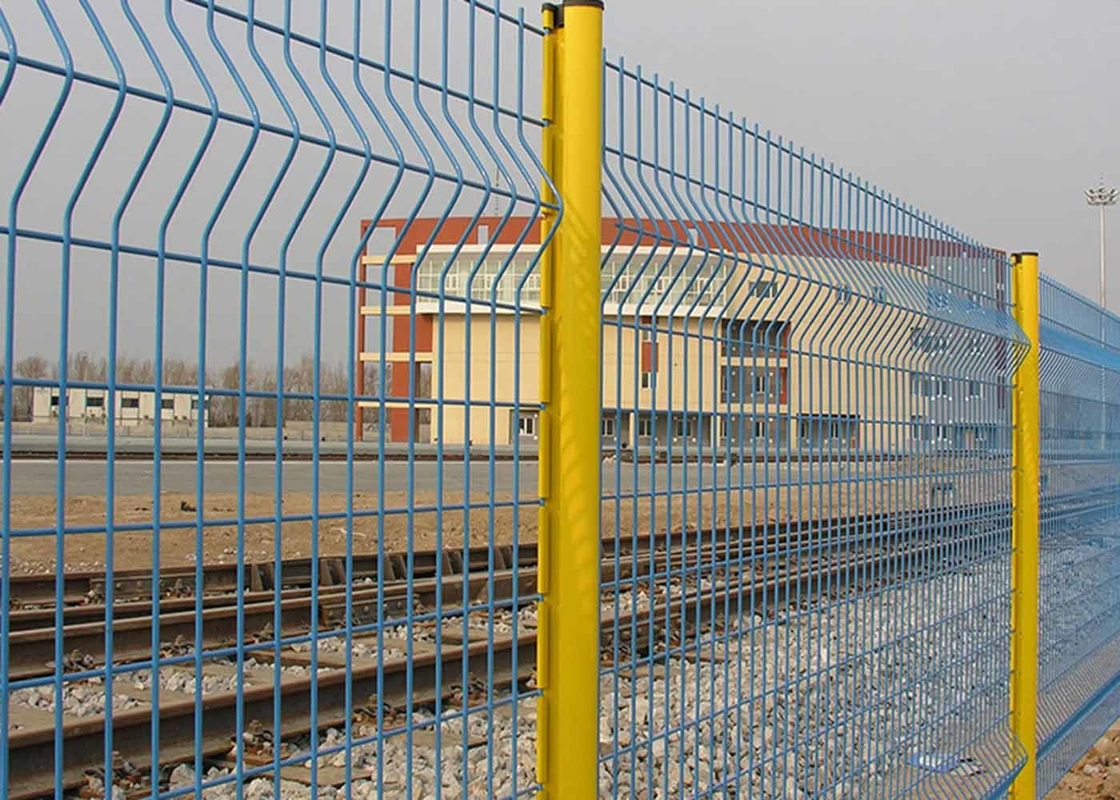

Wire Mesh Security Fencing With Hot Dipped Galvanized Or PVC Coated
Wire mesh Security fencing introduction
Welded wire security fencing is welded with high-strength low-carbon steel wire, and the surface is subject to hot-dip galvanizing, electrostatic spraying and other production processes, so as to ensure that the product will not rust for 15 years.
The grooved design of the column eliminates the need for any connection between the column and the mesh sheet, making it a more secure whole that cannot be disassembled. The column has chassis type, base type, suspension type and other styles to meet your installation in different sites.
The structure of the welded wire security Fencing
Barbed wire and barbed ring can be installed at the top of the column to increase the safety of the protection site. More than 200 kinds of background colors are available for you to choose, to meet the color matching of different sites and environments, and to improve the external image of your installation site. Simple and fast push installation, saving your installation time and installation cost.
Welded wire security fencing with rozor tape wire and barbed wire
Form the airport into an isolated area to protect the safety of aircraft
Welded wire security fencing with rozor tape wire and barbed wire sheet
| Specification of Triangle Bend Fence | |||||||
| Mesh Opening | Wire Thickness | Panel Width | Panel Height | Number of Folds | Post Type | ||
| 50x100mm | 3.0mm | 2.0m | 630mm | 2 | Round Post | ||
| 50x150mm | or | or | 830mm | 2 | Rectangular Post(RHS) | ||
| 50x200mm | 3.5mm | 2.50m | 1030mm | 2 | 48x1.5/2.0mm | Square Post(SHS) | |
| 55x200mm | or | or | 1230mm | 2 | 60x1.5/2.0mm | 40x60x1.5/2.0mm | |
| 75x150mm | 4.0mm | 2.9m | 1430mm | 2 | 50X50x1.5/2.0mm | 40x80x1.5/2.0mm | |
| etc. | or | 1530mm | 3 | 60x60x1.5/2.0mm | 60x80x1.5/2.0mm | ||
| 4.50mm | 1630mm | 3 | 80x80x1.5/2.0mm | 80x100x1.5/2.0mm | |||
| or | 1730mm | 3 | |||||
| 5.00mm | 1830mm | 3 | |||||
| 1930mm | 3 | ||||||
| 2030mm | 4 | ||||||
| 2230mm | 4 | ||||||
| 2430mm | 4 | ||||||
| Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated | |||||||
| Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black,All RAL color can be customized. | |||||||
| Note: The fence can be customized according to your required if above specification is not satisfied with you. | |||||||
