With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-NLW |
| Minimum Order Quantity: | 300 square meter |
|---|---|
| Price: | USD1.2-3.6/SQUARE METER |
| Packaging Details: | PALLET |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 SQUARE METER/DAY |
| Width: | 0.7-2.0m | Mesh Size: | 100*50mm Or As Your Request |
|---|---|---|---|

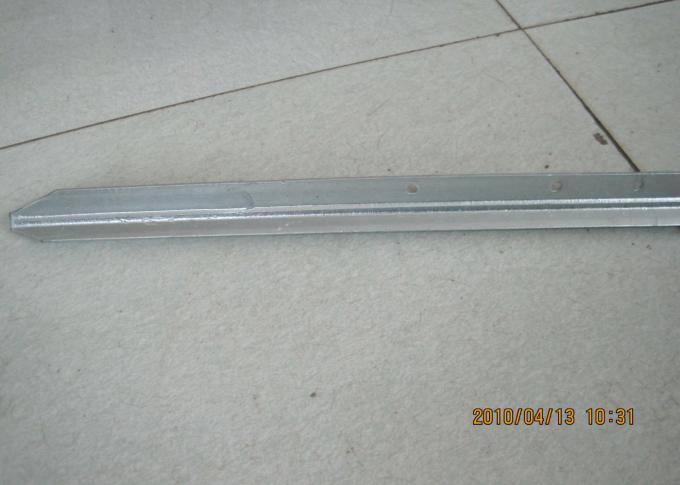

| Post: | Y Post | Height: | 1500MM |
| Material: | Hot Dipped Galvanized Steel Wire | Color: | Sliver |
| High Light: | 0.7m Wire Mesh Fencing,2.0m Wire Mesh Fencing,Grassland Horse And Cattle Fencing |
||
Hot Dipped Galvanized Grassland Cattle Horse Cow Animal Farm Wire Mesh Fence with Y T Post

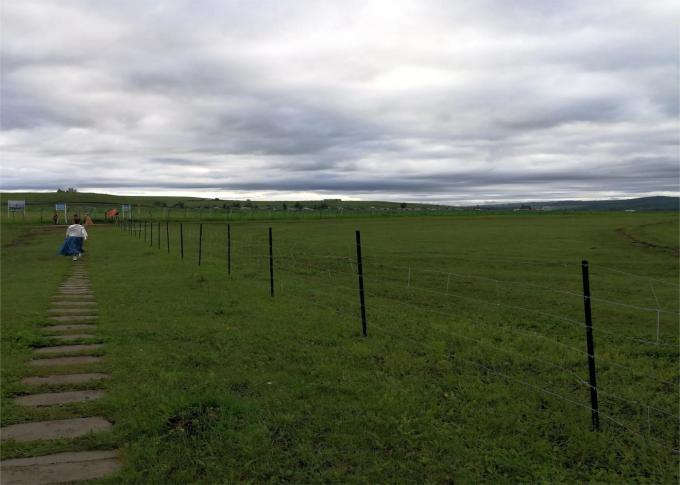

grassland cattle horse fence is a fence found in the livestock farming. The deer fence is widely used in the grassland areas for purposes of protecting ecological balance and preventing landslides. It looks very attractive, it is sturdy, durable and low priced. The grassland cattle horse fence is normally made out of hot-dip galvanized steel wires, whose zinc coating weight is usually 60g-100g/m2. But in wet areas, there is a relatively high requirement for the zinc coating weight, namely about 230g/m2. Recently cold galvanized steel wires are also used to produce deer fences in Africa.
Horizontal wires, or warp wires of the grassland cattle horse fence panel, feature their tensile resistance 80kgs to 90kgs to increase their impact resistance. Meanwhile vertical wires, or weft wires of the deer fence mesh panel, are mild steel wires with tensile resistance 40kgs to 50kgs. Vertical wires are wrapped around horizontal wires, and in terms of the wrapping process, the edge wire should be wrapped at least 2.5 laps, whereas the inner wire should be wrapped at least 5 laps (In the course of wrapping, the mechanical pressure 2Tons to 3Tons should be applied to prevent vertical wires from sliding).
Hot Dipped Galvanized Grassland Cattle Horse Cow Animal Farm Wire Mesh Fence with Y T Post
| Material | High quality high carbon steel wire | Surface treatment | Class A: Electro galvanized fixed knot fencing (zinc coated: 15 g/m2) Class B: Hot dipped galvanized fixed knot fencing (zinc coated:30-50 g/m²) Class C: Heavy hot-dip galvanized fixed knot fencing (zinc coated:220-280 g/m²) |
| Line Wire Diameter | 1.6mm, 2.0mm, 2.5mm and 3.0mm | Knot Type | Fixed knot |
| Fence Length | 50m, 100m or 150m | Fence Height | 1.8m - 3.8m |
| Top Wire Diameter | 2.0mmm 2.5mm, 3.0mm and 3.7mm | Bottom Wire Diameter | 2.0mmm 2.5mm, 3.0mm and 3.7mm |
| Wire diameter and tensile strength | Horizontal wires: Diameter 2.5 mm, tensile strength 1100-1300 N/mm² | ||
| Vertical wires: Diameter 2.5 mm, tensile strength 600-850 N/mm² | |||
| Knot wires: Diameter 2.2 mm, tensile strength 400-525 N/mm² | |||
Hot Dipped Galvanized Grassland Cattle Horse Cow Animal Farm Wire Mesh Fence with Y T Post
