With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | NEW GABION |
| Certification: | ISO9001, ISO14001 |
| Model Number: | XH1688 |
| Minimum Order Quantity: | 100 roll |
|---|---|
| Price: | USD3.0-10.2/ROLL |
| Packaging Details: | 5 rolls/carton or waterproof paper and weave bag |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 TON PER DAY |
| Material: | Hot Dipped Galvanized Wire Or Stainless Steel Wire | Advantage: | Security Fence |
|---|---|---|---|
| Color: | Green, Silver | Specification: | Variouse Types |
| Cutomized: | Yes | Wire Diameter: | 2.5mm |
| Installation: | Easy | Application: | Army, Prison, School, Bank |

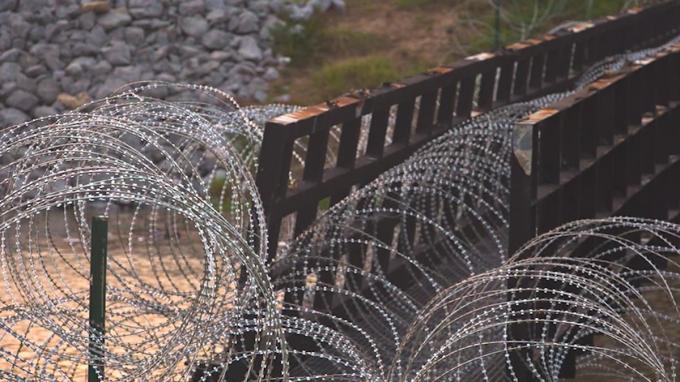

Concertina razor wire fence

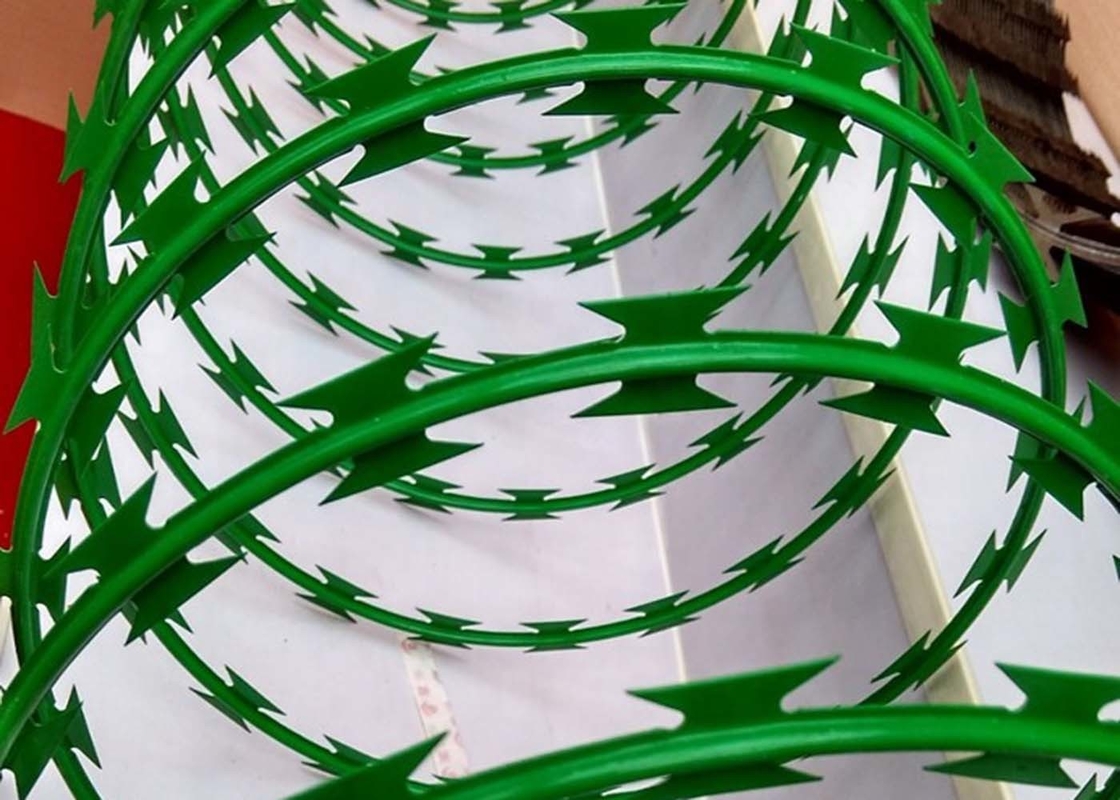

Concertina Razor Wire
Concertina razor wire as a greater sense of security option, concertina wire coil is the most defensive barrier for multiple purposes.

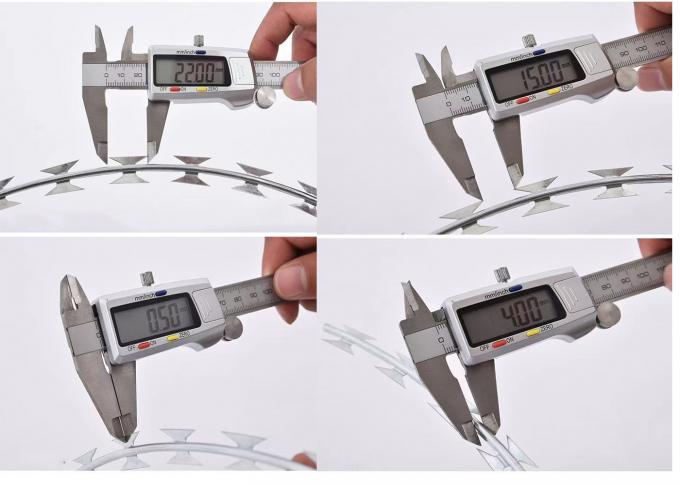

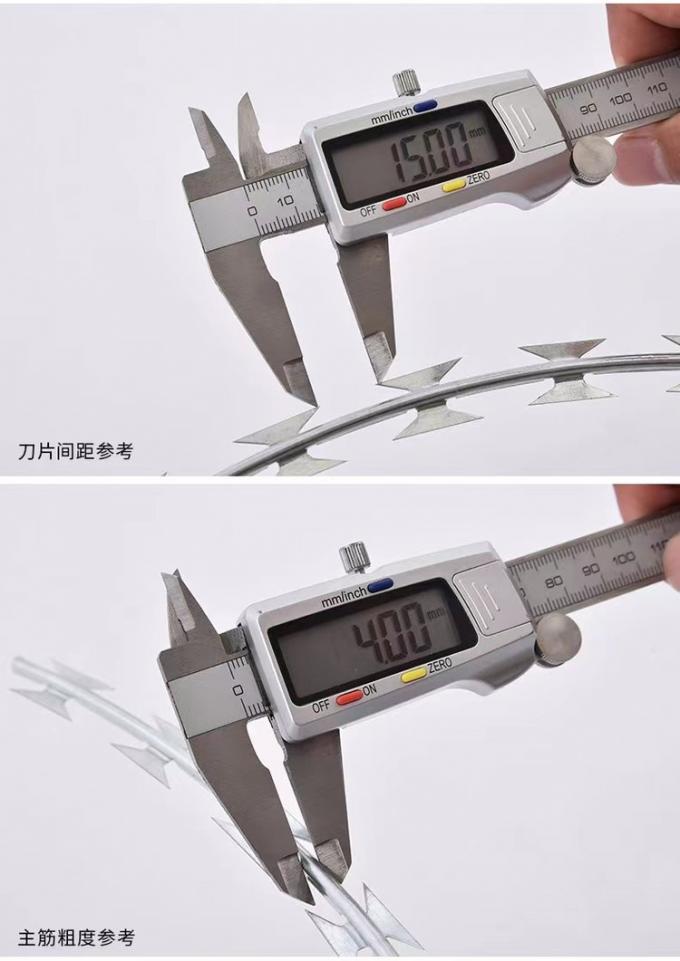

The center wire diameter of concertina razor wire is 2.5 mm , around the center wire there is consists of a continuous mild steel strip that is enclosed with sharp blades.
Concertina razor wire types
Single Coil Razor Wire Single coil Concertina Wire is installed without clips, it runs in natural loops on walls.Cost less and can be easily installed.

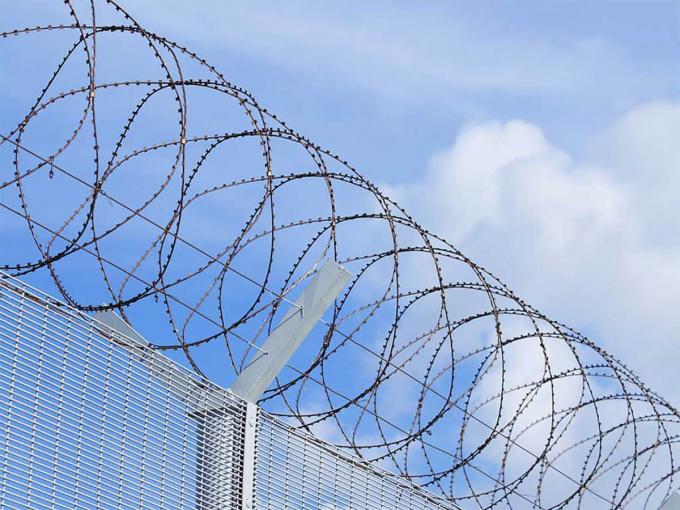

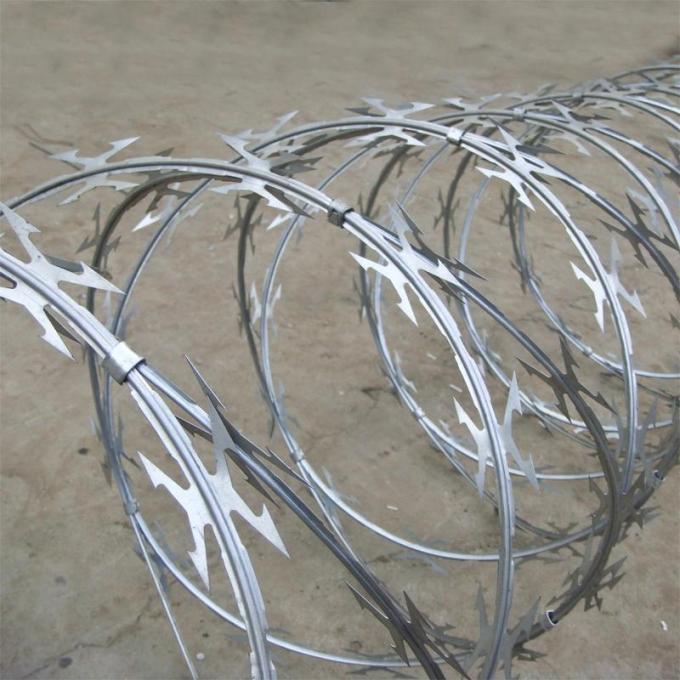

Crossed Razor Wire Two pieces of razor wire were bounded together by clips to make it more strength.The spiral intersecting barbed wire presents an ntersecting shape after opening with beautiful feature and practicality.
Flat warp razor wire Flat warp razor wireis a new type of razor barbed wire. Press two loops into flat then expand them across. We usually use it together with been line razor barbed wire to build a defending wall, or use it alone as a fence.

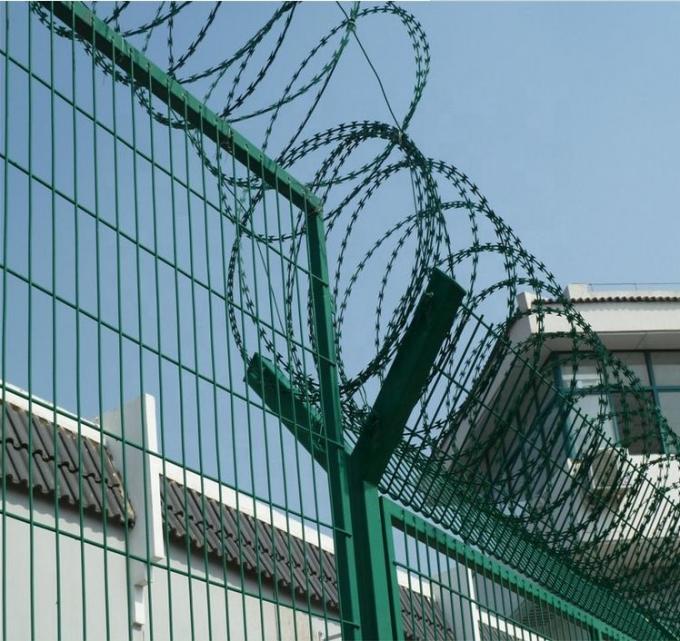

Razor Wire Fence Welded razor mesh fence is a new form of razor bared wire mesh for security,it with practicality blade and the feature looks very
| Concertina Wire Coils Specification: | ||||
| Type | Outside Diameter | No. of Loops | Standard Length per Coil | Notes |
| CBT-65 | 450mm | 33 | 8M | Single coil |
| CBT-65 | 500mm | 41 | 10M | Single coil |
| CBT-65 | 700mm | 41 | 10M | Single coil |
| CBT-65 | 960mm | 53 | 13M | Single coil |
| BTO - 10.15.22 | 500mm | 102 | 16M | Cross type |
| BTO - 10.15.22 | 600mm | 86 | 14M | Cross type |
| BTO - 10.15.22 | 700mm | 72 | 12M | Cross type |
| BTO - 10.15.22 | 800mm | 64 | 10M | Cross type |
| BTO - 10.15.22 | 960mm | 52 | 9M | Cross type |
| Outside Diameter | No. of Loops | Standard Length per Coil | Razor Type | Notes |
| 450mm | 33 | 7M-8M | CBT-60, 65 | Single Coil |
| 500mm | 56 | 12M-13M | CBT-60, 65 | Single Coil |
| 700mm | 56 | 13M-14M | CBT-60, 65 | Single Coil |
| 960mm | 56 | 14M-15M | CBT-60, 65 | Single Coil |
| 450mm | 56 | 8M-9M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 500mm | 56 | 9M-10M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 600mm | 56 | 10M-11M (3clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 600mm | 56 | 8M-10M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 700mm | 56 | 10M-12M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 800mm | 56 | 11M-13M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 900mm | 56 | 12M-14M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 960mm | 56 | 13M-15M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
| 980mm | 56 | 14M-16M (5clips) | BTO-10, 12, 18, 22, 28, 30 | Cross Type |
Concertina razor wire material
The material of concertina razor wire:
Application of the concertina razor wire:
This concertina razor wire is ideal for all types of outdoor use and is ideal for protecting your garden and commercial settings. Used to protect military facilities, prison and government agencies. Ideal for commercial and home use. This strong barbed wire is already wound. It is designed to prevent unknown intruders from your garden. You can wrap this barbed wire around your garden fence for added safety. Made of high quality galvanized steel, our wire is weatherproof and water resistant, making it extremely durable.

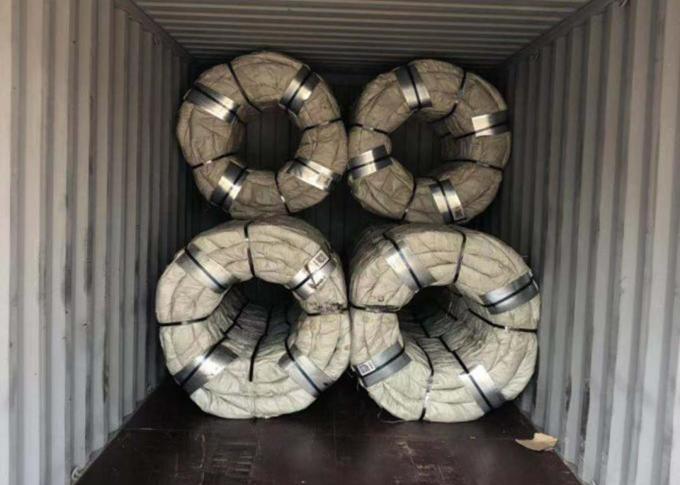

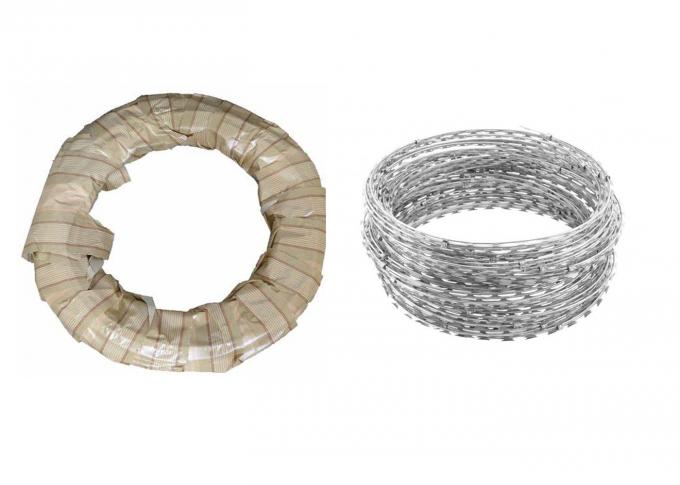

Package of Concertina razor wire:
