SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection

SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection

  • SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection
  • SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection
SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection
Product Details:
Place of Origin: CHINA
Brand Name: xingebin
Certification: ISO9001
Model Number: R-RXFHW
Payment & Shipping Terms:
Minimum Order Quantity: 300 M2
Price: USD8-20/SQUARE METER
Packaging Details: pallet or in bulk
Delivery Time: 7-10 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000M2/WEEK
Contact Now
Detailed Product Description
Application: Protecting Mesh Surface Treatment: Hot Dipped Galvanized
Usage: Protection Name: Flexible Wire Mesh Screen
Type: Rock Fall Protection Fencing ISO 9001: ISO 9001
Feature: Easy Installing
High Light:

Flexible Wire Mesh Netting

,

Flexible Slope Wire Mesh

,

Protection Slope Wire Mesh

SNS flexible slope security screen wire mesh for rockfall netting system

SNS Passive protection system is also called stone blocking mesh, made by flexible steel wire rope netting installed in the slopes to stop the falling rocks . It can also be installed in the mud-rock flow area to form the flexible fencing dam to stop the huge solid pellets in the flow.

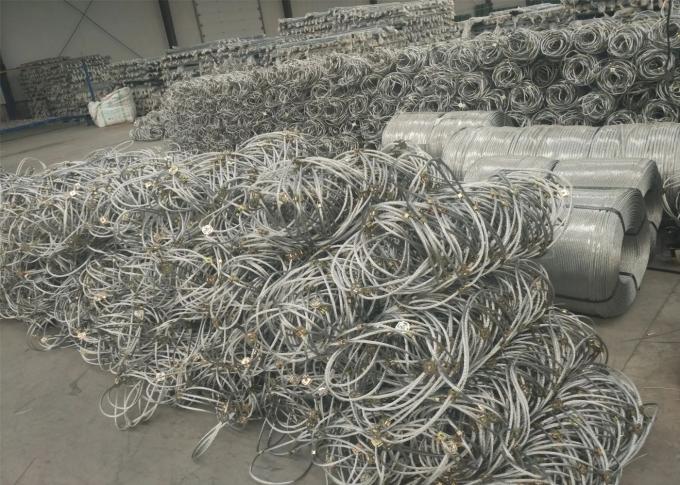

SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection 0



SNS Passive protection system for rockfall netting introduction:

Diamond wire rope net:
Rope wire diameter: 8mm
Hole size: 100mm-300mm (+/- 5%)
Roll size: 4m x 5m, etc.

Grid net:
Wire diameter: 2.0mm or 2.2mm
Hole size: 50mm*50mm
Roll size: 2m*20m

SNS Passive protection system anchors:
Steel Rope anchor diameter: 16mm
Length:2x2-6m

Rope:
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm
SNS Passive protection system other Components: Steel Column, rope support base, vacuum ring

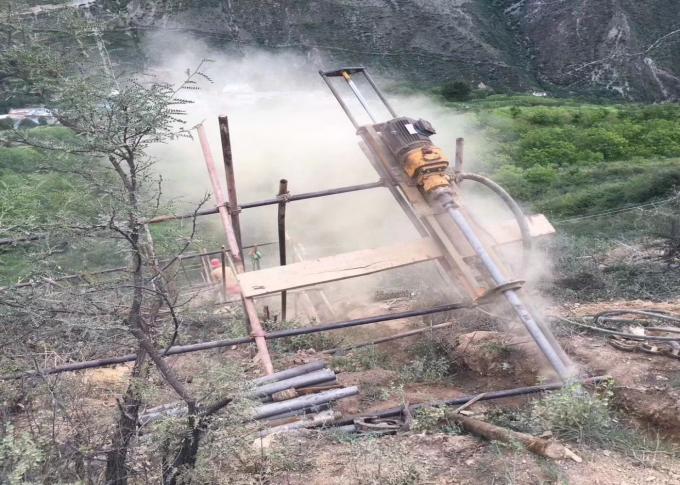

SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection 1





SNS Passive protection system for rockfall netting material:

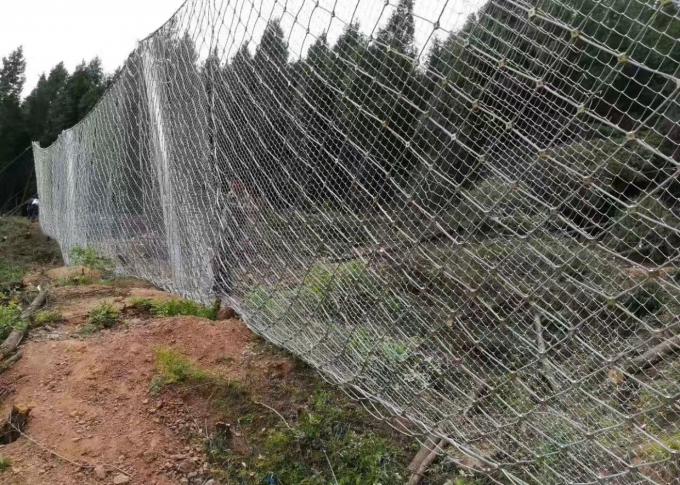

SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection 2



SNS Passive protection system for rockfall netting

Model Net Size Upper Anchor Rope Supporting Rope Anchor Rope Sewing Rope Loading Capacity
RX-025

Wire rope net:

Wire diameter: 8 mm.

Mesh size: 250 mm x

250 mm.

16 mm single steel wire rope.

1 decompression ring

12 mm double steel wire rope.

Each spacer has 3 decompression rings

12 mm single steel wire rope 8 mm ≤250 kJ
RX-050 Wire rope net: Wire diameter: 8 mm. Mesh size: 200 mm x 200 mm.

14 mm single steel wire rope.

1 decompression ring

16 mm double steel wire rope.

Each spacer has 6 decompression rings

16 mm single steel wire rope 8 mm ≤500 kJ
RX-075

Wire rope net:

Wire diameter: 8 mm. Mesh size: 150 mm x 150 mm.

18 mm single steel wire rope.

2 decompression ring

18 mm double steel wire rope.

Each spacer has 10 decompression rings

18 mm single steel wire rope 8 mm ≤750 kJ

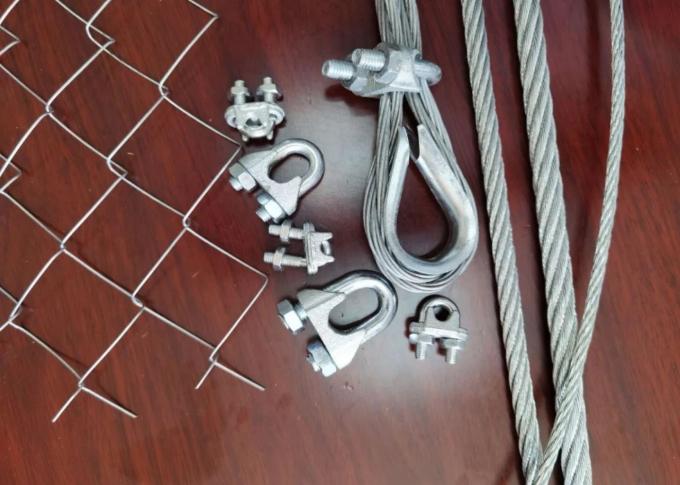

SNS Flexible Wire Mesh Netting , Slope Wire Mesh for Protection 3
