| Place of Origin: | CHINA |
| Brand Name: | xingebin |
| Certification: | ISO9001 |
| Model Number: | R-RXFHW |
| Minimum Order Quantity: | 300 M2 |
|---|---|
| Price: | USD8-20/SQUARE METER |
| Packaging Details: | pallet or in bulk |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000M2/WEEK |
| Material: | Galvanized Steel Wire | Application: | Protecting Mesh |
|---|---|---|---|
| Hole Shape: | Diamond Hole | Type: | Rock Fall Protection Fencing |
| ISO 9001: | ISO 9001 | Feature: | Easy Installing |
| High Light: | Galvanized Spiral Wire Mesh,Rockfall Wire Rope Mesh Netting |
||
hot dipped galvanized spider spiral rope mesh for rockfall neeting system introduction

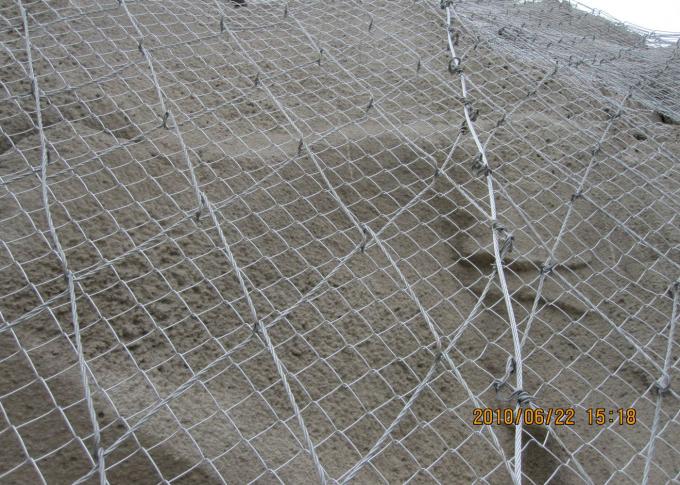

The hot dipped galvanized spider spiral rope mesh for rockfall neeting system made by high tensile 3 mm steel wire, which is the mainly component of the SPIDER System. SPIDER net with a layer of grid net stabilizes large areas of rock with anchors and boundary ropes. Unstable rocks are wrapped with a layer of spiral net and a layer of grid net and anchored all around with boundary ropes.
hot dipped galvanized spider spiral rope mesh for rockfall neeting system specification:
SPIDER spiral rope net: Rope wire structure:3*3mm,
Hole Inscribed circle diameter: 250mm (+/- 5%)
Roll size: 3.5m x 5/10m
Grid net:: Wire diameter: 2.0mm or 2.2mm
Hole size: 50mm*50mm
Roll size: 2m*20m
Anchors: Deformed steel bar anchor diameter: 25mm or 28mm
Length:2m -5m

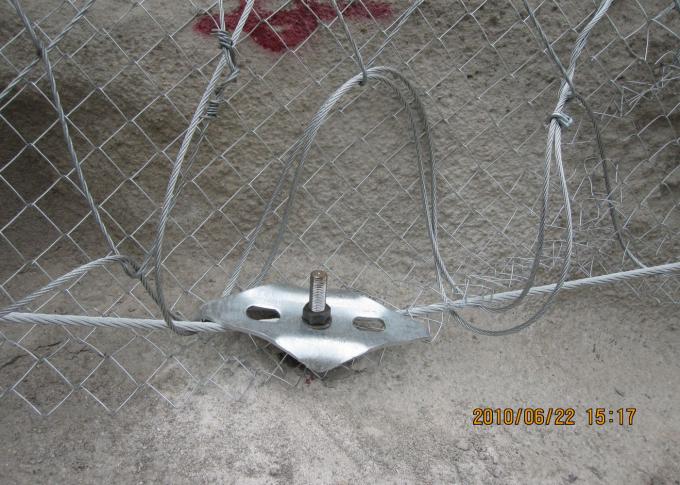

Anchor bearing plate: 320mm x 170/180mm
Rope: Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm
hot dipped galvanized spider spiral rope mesh for rockfall neeting system sheet
|
Model |
Wire Net Size |
Supporting Rope Size |
Sewing Rope Size |
Note |
|
GSS2A |
Spider spiral rope mesh: Wire diameter: 3x3 mm. Mesh size: 250 mm - 300 mm. Roll size: 3.5 m x 10 m. Chain link mesh: Wire diameter: 2.2 mm. Hole size: 50 mm x 50 |
Steel anchor diameter: 16 mm. Boundary rope: 12 mm or 16 mm. |
8 mm steel wire rope |
Double layers structure (chain link meshes and spider spiral rope mesh) Length of the wire rope anchor is 2 m - 3 m. |
