With science and technology as the cornerstone, quality as life.Gabion Welcome You!
|Place of Origin:||CHINA|
|Minimum Order Quantity:||1000 square meter|
|Payment Terms:||T/T, L/C|
|Supply Ability:||20000 SQUARE METERS/DAY|
|Materil:||Q235 Hot Dipped Gal Galfan Wire||Color:||Silver, Green|
|Diameter Of Wire:||2.7mm, 3.2mm||Hole Shape:||Hexagonal|
|Application:||To Protect The Riverbank||Wire Gauge:||16|
Stone Gabion Box,
Gabion Box Hexagonal Hole,
Gabion Stone Box
PVC Coated Hot Dipped Galvanized Gabion Cage Stone Box For Protecting Riverbank
What is the gabion:
Gabion is also knew as stone basket, stone cage ect.
Gabion is steel net made of the steel wire, the gabion has hexagonal mesh.
Surface treatment of gabion
Low-carbon steel wire, the surface treatment is hot-dipped galvanized, the mass of zinc coating is up to 300g/m2, which has corrosion resistance.

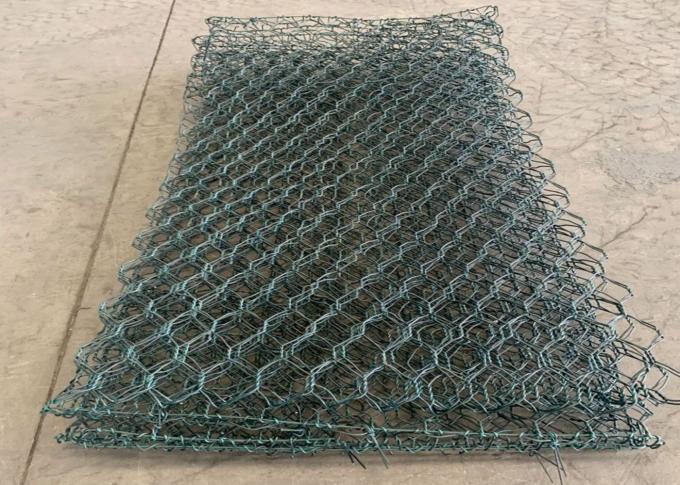

PVC coated wire: PVC coated wire is with a layer of PVC or PE protective layer on the surface of galvanized iron wire, Because of the PVC or PE protective layer, the gabion has longer service life and with more better corrosion resistance.
The third material of steel wire: Galfan, 95% zinc, 5% aluminum
Specification of gabion net (standard)
Gabion material: low carbon iron wire
Surface treatment: Hot dipped galvanized.
Mesh of the gabion: hexagonal
Open Size of gabion : 60x80,80x100,90x110, 100x120, 110x130
The size of gabion net: 1*1*1m, 2*1*1m, 3*1*1m, 4*1*1m. Generally, there is a partition at an interval of one meter or an additional partition at an interval of two meters

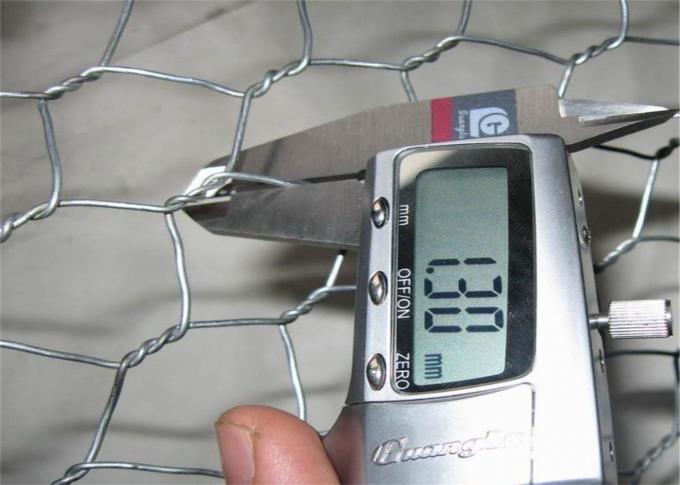

Diameter of gabion wire.
Body wire: 2.0-4mm
Edge wire: 2.0mm-4.5mm
Tie wire: 2.2mm (or C-ring)
We can also make the gabion as customer’s requirements.

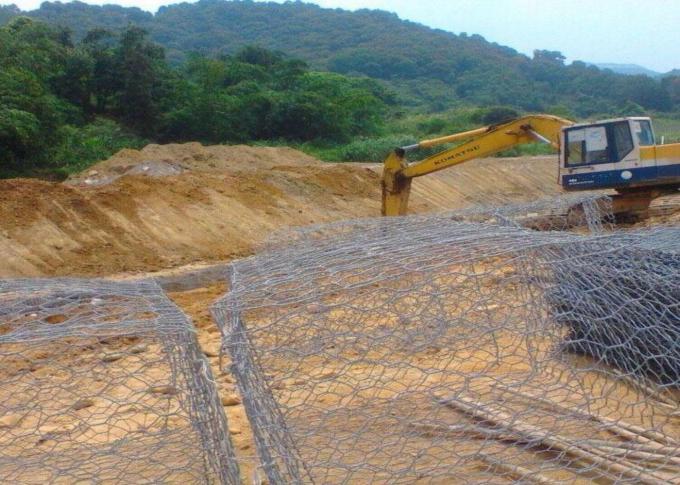

The application of the gabion :

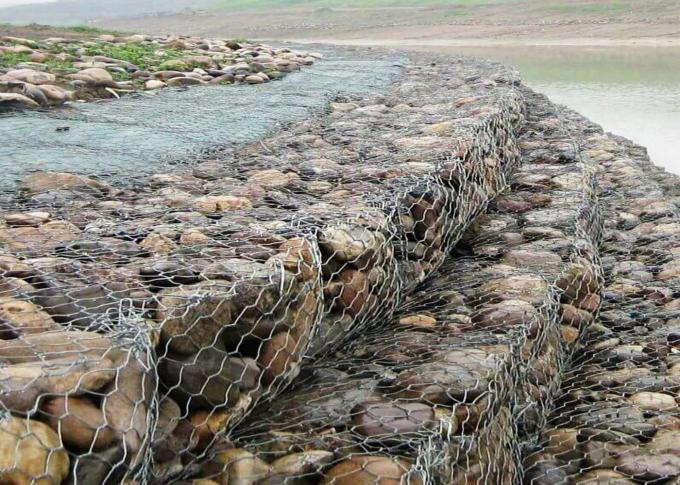

The gabion basket can be used to reinforce river banks. The gabion used to reinforce the river embankment is usually on the inner side of the embankment
Gabion can also be used to guide river water
The gabion is also applied to flood discharge dams and diversion dams, the gabion wall is guided or restricted floods
Gaion is also widely used in highway, railway, construction and other fields
|Aperture||8x10 cm||9x11 cm|
|Mesh Wire diameter||2.7mm||2.7mm|
|Material||Hot Galvanized wire||Hot Galvanized wire|
|Common size||2m x 1m x 1m||2m x 1m x 1m|
|Packing & loading||100sets/bundle ,1200sets/20ft container ,1500sets/40HC|
|Feature||Strong structure and corrosion-resistance to protect the dam and riverbank|
The Advantages of the gabion
1. Using gabion to build dams is fast and highly mechanized,
2. Convenient transportation: the gabion can be folded and packed with pallets, it will be save the freight..
3. The gabion is easy to install, it can be assembled on the construction site, which is convenient and fast.
4. Strong corrosion resistance: Wire surface of the gabion is adopted hot galvanizing technology to increase its corrosion resistance.
5. Environmental protection: the earth between the filling materials of the embankment built with gabion net is conducive to the growth of plants.
XINGEBIN brand woven gabion basket is widely used for the following application: control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts; coastal embankment works; architectural feature retaining walls.
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today

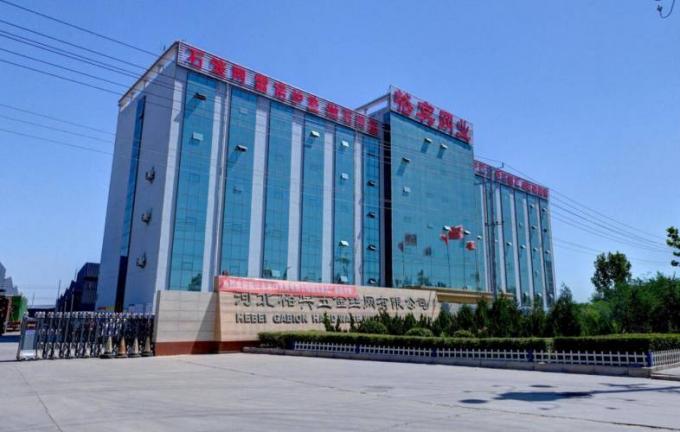

Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
