Green PVC Coated Gabion Box 3mX1mX1m Modern Gabion Wall For Shore Protection

Product Details:

Place of Origin:	CHINA
Brand Name:	XINGEBIN
Certification:	ISO9001
Model Number:	R-SLW

Payment & Shipping Terms:

Minimum Order Quantity:	1000 square meter
Price:	USD1.0-2.5/SQUARE METER
Packaging Details:	BUNDLE+PALLET
Delivery Time:	10-15DAYS
Payment Terms:	T/T, L/C
Supply Ability:	20000 SQUARE METERS/DAY

Contact Now

Detailed Product Description

Materil:	PVC Coated	Hole Size:	60mmx80mm, Customized
Width::	1.5m	Length::	3m
Hight::	0.5m	Hole Shape:	Hexagonal
Wire Gauge:	2.0-4.0mm	Aookucatuib:	Gabion, Protective Mesh, Retaining Wall, Shore Protection
Surface Treatment:	Hot Dipped Galvanized, PE/PVC Coated, Galvanized+PVC COATED	Color:	Green
High Light:	PVC Coated Gabion Box , Green Gabion Box , Modern Gabion Wall

Galvanized Hexagonal gabion

Gabion is also known as stone basket, stone cage ect.

Gabion is steel net made of the steel wire, the gabion has hexagonal mesh.

PVC coated wire: PVC coated wire is with a layer of PVC or PE protective layer on the surface of galvanized iron wire, Because of the PVC or PE protective layer, the gabion has longer service life and with more better corrosion resistance.

P.V.C. Coating: Where stated in the Contract or specified by the Engineer, all zinc coated steel wire

shall be additionally coated with a minimum of 0.5 mm of grey P.V.C., which shall be suitable to

resist destructive effects of immersion in acidic, salt, or polluted water, exposure to ultra violet light

and abrasion

Material: Hot dip galvanizedwire + PVC coated wire
Surface treatment: galvanized + pvc coated.
Weaving character: Normal twisted, reverse twisted and double-way twisted.
Mesh Hole: 60x80mm,80x100mm,100x120mm.
Wire Dia: 2.7mm/3.4mm

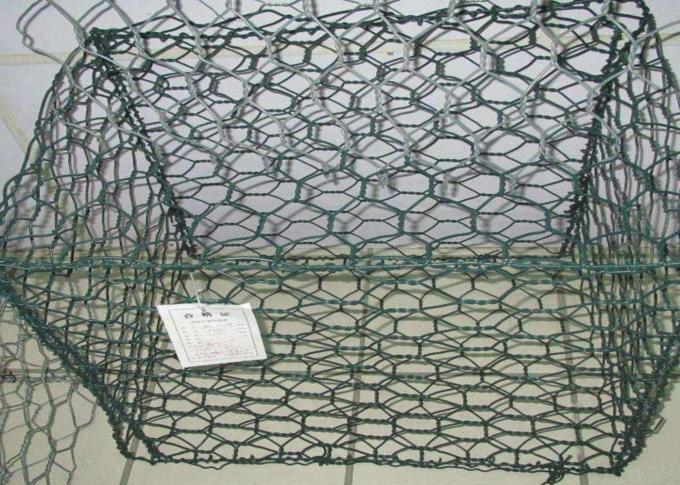

Green PVC Coated Gabion Box 3mX1mX1m Modern Gabion Wall For Shore Protection 0

PVC coated Gabions shall be manufactured in such a manner that their sides, ends, lid and diaphragm(s) can be

assembled to form rectangular units of the specified dimensions. Gabions shall be of a single unit

construction. The front, base, back and lid shall be woven into a single unit. All perimeter edges of the

mesh forming the gabion shall be securely selvedged so that the joints obtained have at least the same

strength as the wire mesh itself.

PVC coated gabion

Poducts	Gabions	Hole Type	Hexagonal
Material	Galvanized wire + PVC coated wire	Wire Guage	2.00MM - 4.00mm
Hole size	60mm x 80mm , 80mm x100mm , 100mm x 120mm , 120mm x 150mm	Gabion Size	2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m.
Twist number	3 or 5	Package	Plastic film coated then pallet
Appication	Control and guide of water or flood. Flood bank or guiding bank Proventing of rock breaking. Water and soil protection. Bridge protection. Strengthening structure of soil. Protection engineering of seaside area. Seaport engineering. Isolation walls. Protection of road.	Gabions Features	(1) economy. Just a stone into the gabion sand seal it. (2) construction is simple, no special skills. (3) there is a strong withstand natural damage and corrosion resistance and resistance to adverse climate impacts. (4) can withstand a wide range of deformation, but not collapse.
Origin	China	Sample	Avalible

The application of the PVC coated gabion :

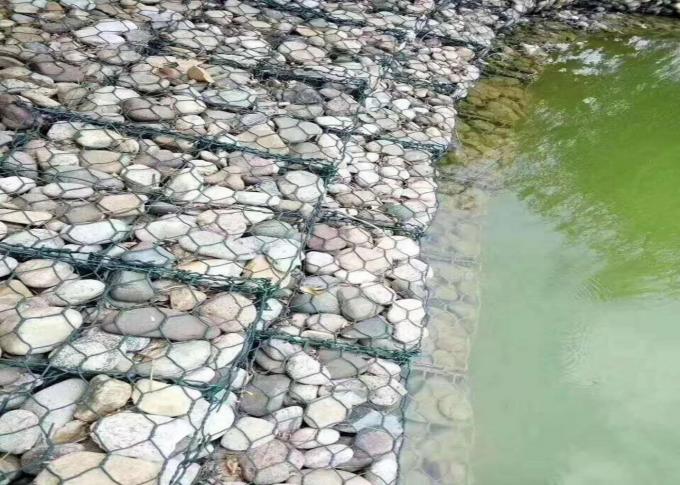

The gabion basket can be used to reinforce river banks. The gabion used to reinforce the river embankment is usually on the inner side of the embankment

Gabion can also be used to guide river water

The gabion is also applied to flood discharge dams and diversion dams, the gabion wall is guided or restricted floods

Gaion is also widely used in highway, railway, construction and other fields

Green PVC Coated Gabion Box 3mX1mX1m Modern Gabion Wall For Shore Protection 1
