With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-SLW |
| Minimum Order Quantity: | 1000 square meter |
|---|---|
| Price: | USD1.0-2.5/SQUARE METER |
| Packaging Details: | BUNDLE+PALLET |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 SQUARE METERS/DAY |
| Materil: | Galfan Wire | Color: | Silver |
|---|---|---|---|
| Hole Size: | 80mmx100mm | Width:: | 1m |
| Length:: | 2m | Hight:: | 1m |
| Hole Shape: | Hexagonal | ||
| High Light: | Galfan Gabion Baskets,Wire Gabion Baskets,Gabion Factory |
||
galfan wire gabion basket,gabion introduction
1)Electric galvanized wire, zinc coated ≥10g/㎡
2)Hot dip galvanized wire
Heavy zinc-coated wire,EN10244-2 Zinc coated ≥240g/㎡
3)Pvc coated wire( Pvc thickness:0.38-0.5mm)
4)Galfan wire,5%Alu+95% zinc,10%Alu+90% zinc
Gabion basket mesh Type: Double twisted hexagonal
Gabion basket mesh size: 5x7cm,6x8cm,8x10cm,8x12cm,10x12cm etc.
Gabion basket size: can be design as per the clients' requirement.
The normal size:2x1x0.5m,3x2x0.23m,4x2x0.23m and so on.
galfan wire gabion basket,gabion detail:
| Gabion basket | |||
| Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter (PVC Coate)/ Inner/Outside(mm) |
Strands |
| 60X80 | f2.0-2.8 | f2.0/3.0-2.5/3.5 | 3/5 |
| 80X100 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3/5 |
| 80X120 | f2.0-3.2 | f2.0/3.0-2.8/3.8 | 3/5 |
| 100X120 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3/5 |
| 100X150 | f2.0-3.4 | f2.0/3.0-2.8/3.8 | 3/5 |
| 120X150 | f2.0-4.0 | f2.0/3.0-3.0/4.0 | 3/5 |

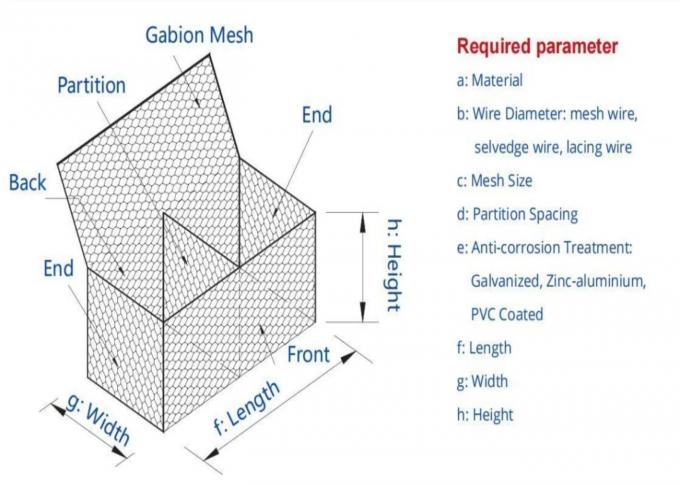

galfan wire gabion basket,gabion drawing:
