With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-SLW |
| Minimum Order Quantity: | 1000 square meter |
|---|---|
| Price: | USD1.0-2.5/SQUARE METER |
| Packaging Details: | BUNDLE+PALLET |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 SQUARE METERS/DAY |
| Materil: | Q235 Hot Dipped Gal Galfan Wire | Color: | Silver, Green |
|---|---|---|---|
| Application: | To Protect The Riverbank | Diameter Of Wire: | 2.7mm, 3.2mm |
| Hole Shape: | Hexagonal | Wire Gauge: | 16 |
| High Light: | Stone Cage Gabion,Gabion Cage Retaining Wall,Stone Gabion Retaining Wall |
||

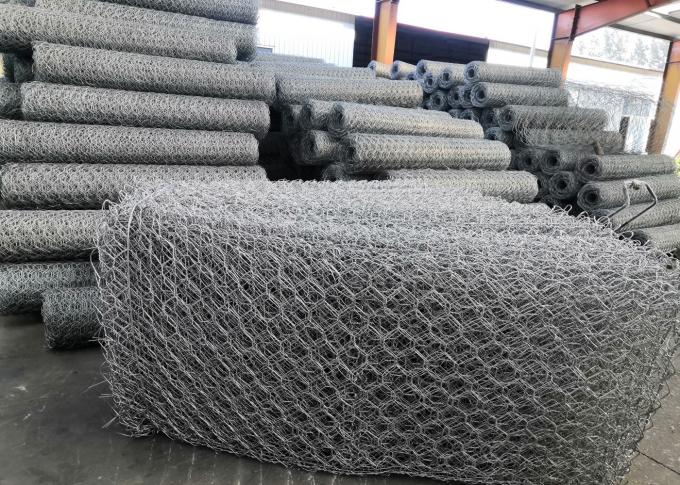

Gabion cage
Gabion cage introduction

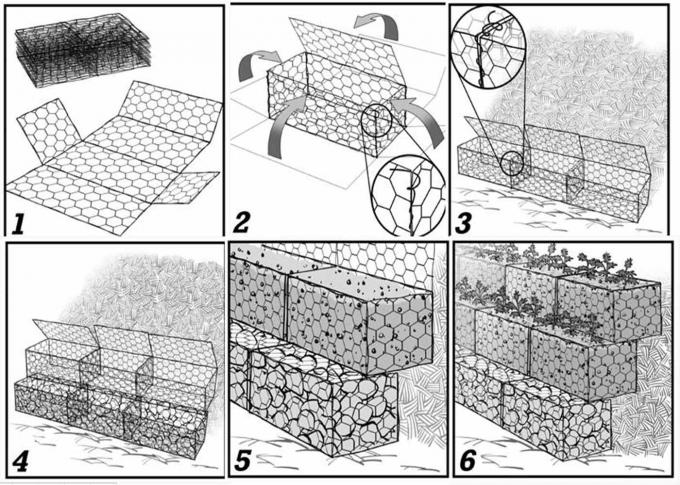

Gabion cage is a wire mesh cage cut and folded from hexagonal mesh.
Gabion cage is generally folded and assembled from four pieces hexagonal meshes. A large piece of hexagonal mesh is folded into four large sides of a square (the end, the top front and behind sides), with two small piece of hexagonal meshes at both sides, and there is a partition mesh in the middle
The structure of the gabion
The gabion cage can also be made into triangles and trapezoids. The slope of the dike built by such this type gabion is on a plane
The gabion is divided into several cells by the diaphragm. In order to strengthen the strength of the gabion net pad structure, the steel wire diameter at the edge of each mesh plate of the gabion net pad is relatively large
The advantages of the gabion
The gabion with excellent corrosion resistance and durability.
The steel wire of gabion mesh adopts the hot-dipped aluminum zinc plating process, and the coating on the steel wire surface is more stable, which can effectively reduce the oxidation of the mesh wire.
After the resin film coating process, it has the characteristics of corrosion resistance, anti-static, anti-aging and oxidation resistance, the gabion has a longer service life. According to the test, the plastic is soaked in 30% hydrochloric acid for 10 days, and there is no discoloration or cracking. It can be seen that this material is absolutely reliable even in high pollution areas. The service life of steel wire coated with resin film can reach 70 years.
Specification of Gabion cage of popular in our factory
| Aperture | 8x10 cm | 9x11 cm |
| Mesh Wire diameter | 2.7mm | 2.7mm |
| Selvedge wire | 3.4mm | 3.4mm |
| Tie wire | 2.2mm | 2.2mm |
| Material | Hot Galvanized wire | Hot Galvanized wire |
| Common size | 2m x 1m x 1m | 2m x 1m x 1m |
| Weight | 16.7kg/set | 16.0kg/set |
| Packing & loading | 100sets/bundle ,1200sets/20ft container ,1500sets/40HC | |
| Feature | Strong structure and corrosion-resistance to protect the dam and riverbank | |
The Advantages of the gabion
1. Using gabion to build dams is fast and highly mechanized,
2. Convenient transportation: the gabion can be folded and packed with pallets, it will be save the freight..
3. The gabion is easy to install, it can be assembled on the construction site, which is convenient and fast.
4. Strong corrosion resistance: Wire surface of the gabion is adopted hot galvanizing technology to increase its corrosion resistance.
5. Environmental protection: the earth between the filling materials of the embankment built with gabion net is conducive to the growth of plants.
XINGEBIN brand woven gabion basket is widely used for the following application: control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts; coastal embankment works; architectural feature retaining walls.
Company information:
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
Contact Person: admin
