With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-SLW |
| Minimum Order Quantity: | 1000 square meter |
|---|---|
| Price: | USD1.0-2.5/SQUARE METER |
| Packaging Details: | BUNDLE+PALLET |
| Delivery Time: | 10-15DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 SQUARE METERS/DAY |
| Materil: | Q235 Hot Dipped Gal Galfan Wire | Color: | Silver, Green |
|---|---|---|---|
| Application: | To Protect The Riverbank | Diameter Of Wire: | 2.7mm, 3.2mm |
| Hole Shape: | Hexagonal | Wire Gauge: | 16 |
| High Light: | PVC Coated Gabion,Gabion,Gabion |
||
Gabion
About Gabion
Gabion is also well known as .

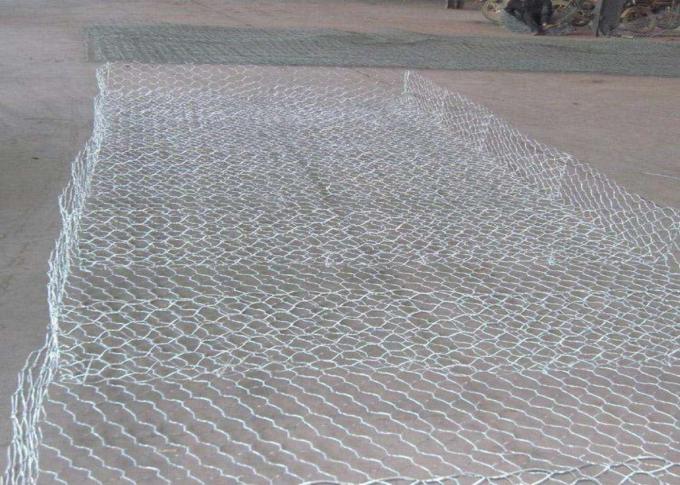

Gabion is a hexagonal mesh woven by high-quality low-carbon steel wire or PVC coated wire. It is mainly used for slope protection, riverbed bedding and anti scouring, etc.
Gabion structure
Gabion is connected into a whole after being filled with block stones and other filling materials.

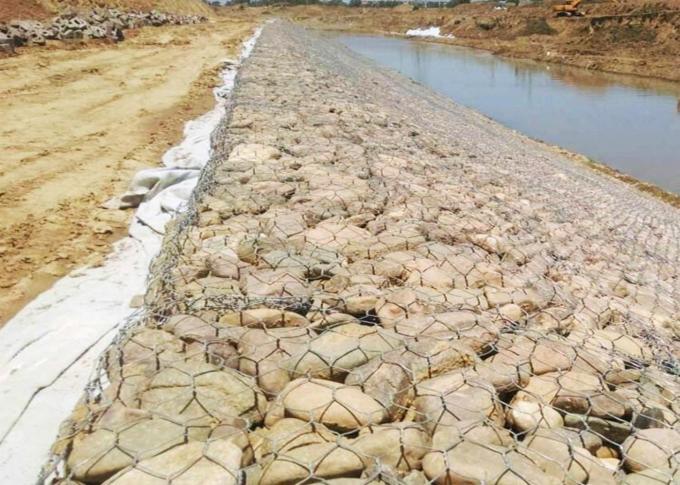

Gabion has become an anti scour structure mainly used for water conservancy embankment, bank slope, apron, etc., and has the advantages of flexibility and adaptability to the foundation
Difference between Gabion box and Gabion
The difference between Gabion and Gabion cage is that the height of is low, and the structural form is flat and large
Its diameter of coated steel wire is smaller than that of gabion, and there are generally two kinds of double clapboard (steel wire diameter 2.0mm) and single clapboard (2.2mm).
The commonly used is the double diaphragm Reynolds pad, which has the advantages of convenient construction, slope protection can effectively prevent stone collapse, and increase the anti scouring capacity of the structure.
Advantages of the Gabion .
1. The gabion can improve the stability of riverbed slope
2. The gabion can protect the riverbed from scouring
3. Greening and ecological protection of slope and bank protection
4. Convenient construction, the gabion can be installed in the construction site, it’s easily to install.
5. The Gabion can be folded, it’s convenient to delivery.
Specification of Gabion cage of popular in our factory
| Aperture | 8x10 cm | 9x11 cm |
| Mesh Wire diameter | 2.7mm | 2.7mm |
| Selvedge wire | 3.4mm | 3.4mm |
| Tie wire | 2.2mm | 2.2mm |
| Material | Hot Galvanized wire | Hot Galvanized wire |
| Common size | 2m x 1m x 1m | 2m x 1m x 1m |
| Weight | 16.7kg/set | 16.0kg/set |
| Packing & loading | 100sets/bundle ,1200sets/20ft container ,1500sets/40HC | |
| Feature | Strong structure and corrosion-resistance to protect the dam and riverbank | |
The Advantages of the gabion
1. Using gabion to build dams is fast and highly mechanized,
2. Convenient transportation: the gabion can be folded and packed with pallets, it will be save the freight..
3. The gabion is easy to install, it can be assembled on the construction site, which is convenient and fast.
4. Strong corrosion resistance: Wire surface of the gabion is adopted hot galvanizing technology to increase its corrosion resistance.
5. Environmental protection: the earth between the filling materials of the embankment built with gabion net is conducive to the growth of plants.
XINGEBIN brand woven gabion basket is widely used for the following application: control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts; coastal embankment works; architectural feature retaining walls.
