| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-AQFHW |
| Minimum Order Quantity: | 100SETS |
|---|---|
| Price: | USD15-40/SET |
| Packaging Details: | PALLET |
| Delivery Time: | 5-8DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500SETS/WEEK |
| Materil: | Galvanized Steel Plate | Hole Size: | 40mmx80mm |
|---|---|---|---|
| Color: | Green Or Other Color | Application: | Fence Mesh |
| Uses: | Protecting | ||
| High Light: | Steel Wire Mesh Fencing,Wire Mesh Fencing Antirust,Expanded Metal Mesh Fence |
||

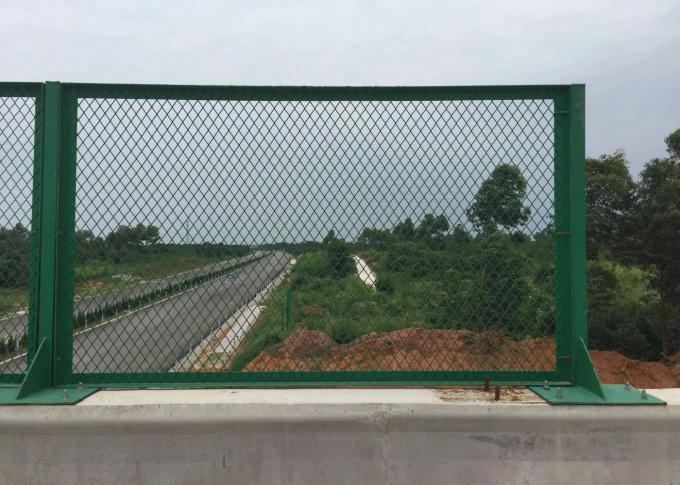

Antirust and Easy Installation Expanded Metal Steel Sheet Grating Fence with Diamond Hole
1) Bearing bar specification: 20 x 3 to 100 x 6
2) Bearing bar pitch: 12.5, 15, 30, 40, 60mm etc, also be according to client's requirement and 30, 40, 60mm are recommended
3) Cross bar pitch: 38, 50, 76, 100mm, also be according to client's requirement and 50, 100mm are recommended
4) Material: Mild steel or stainless steel
5) Surface treatment: Untreated, painted or hot-DIP galvanized
6) Steel Grating Standards:
A) China: YB/T4001-1998
B) USA: ANSI / NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985

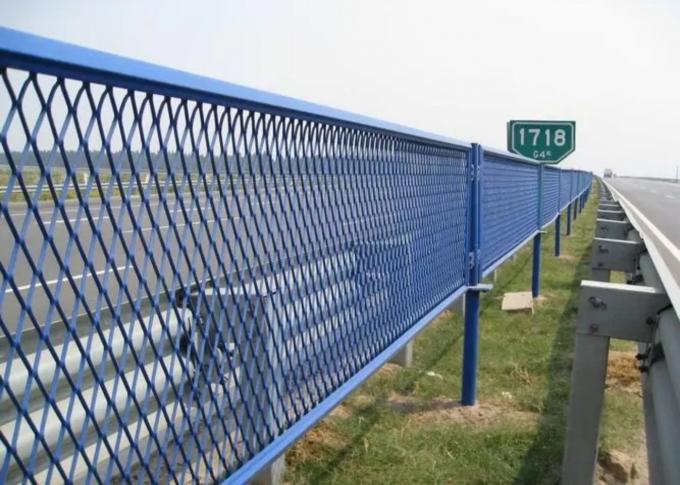

Antirust and Easy Installation Expanded Metal Steel Sheet Grating Fence with Diamond Hole

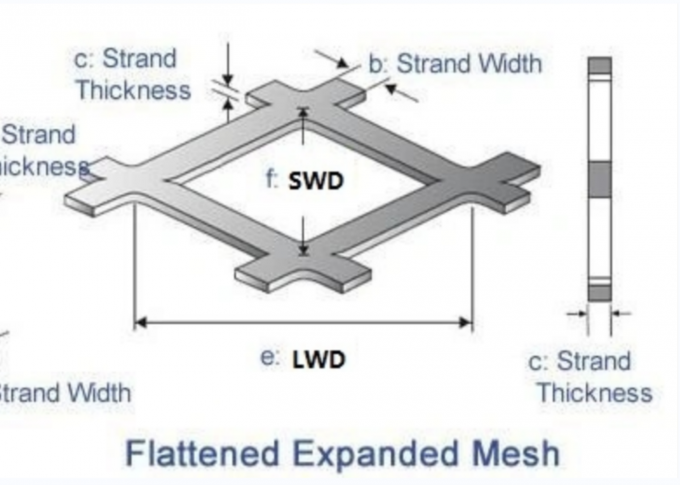

Specification of Expanded Metal Mesh |
||||||
| Sheet Thickness(mm) | Opening in Width (mm) |
Opening in Length (mm) |
Strand Width(mm) | Roll Width (m) |
Roll Length (m) |
Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Antirust and Easy Installation Expanded Metal Steel Sheet Grating Fence with Diamond Hole
