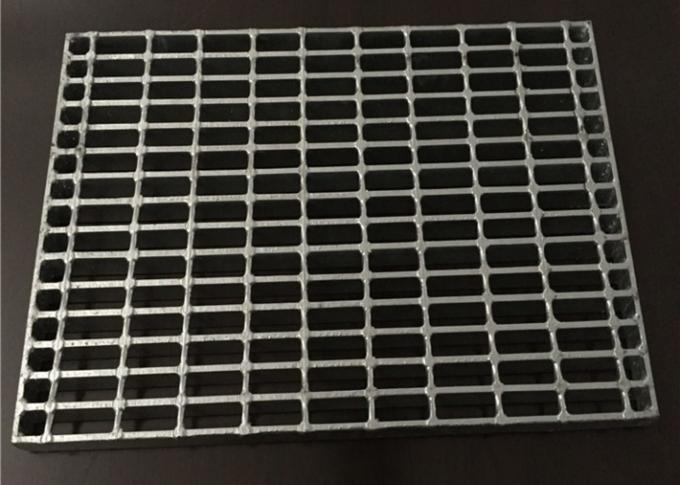

Stainless Steel Bar Grating Drain Grill For Floor Grating,Drain , Trench And Ship With Material Of SS 304 & Hot

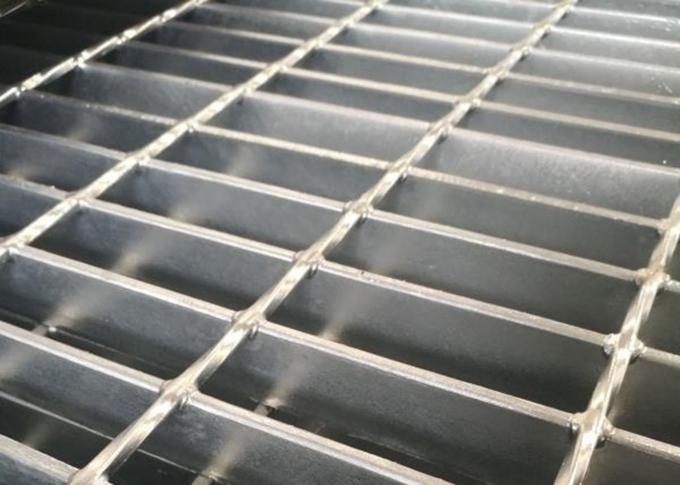

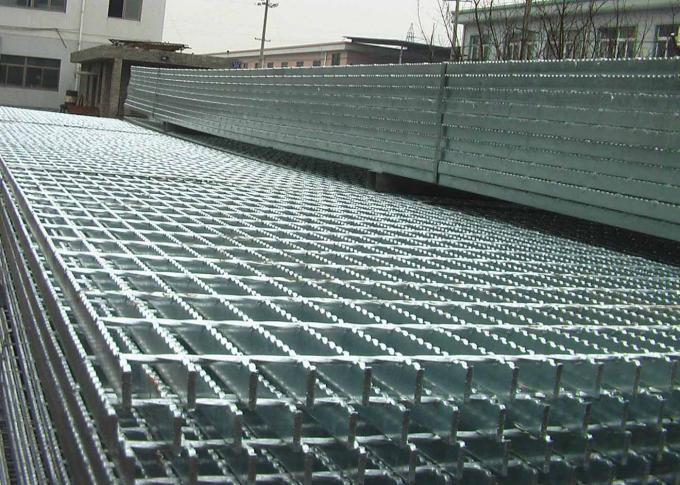

Stainless steel bar grating introduction
The cost of stainless steel bar grating is much higher than that of conventional galvanized steel grating. It is generally used in food factories, kitchen drainage, pharmaceutical factories and other areas with high anti-corrosion requirements.
Stainless steel bar grating is a steel grating made of stainless steel.
Its production process is similar to that of hot-dip galvanized steel grating, except that it does not need anti-corrosion treatment such as painting or hot-dip galvanization, but needs surface polishing treatment to remove welding slag or scar left during spot welding.

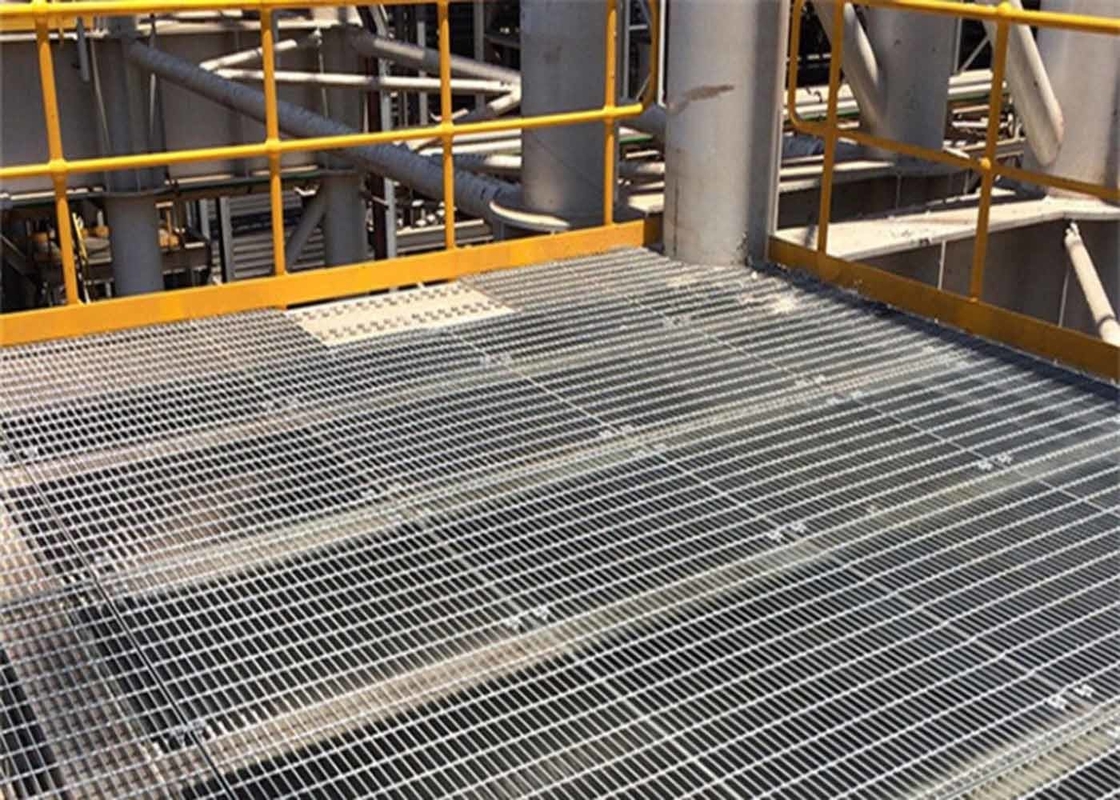

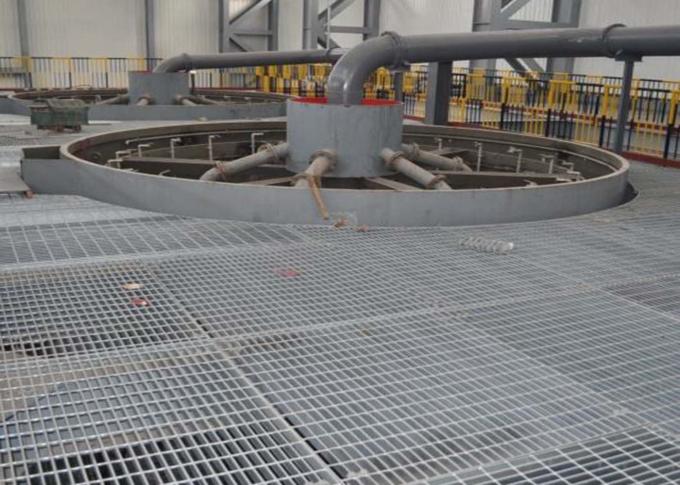

Application of Stainless steel grating
Stainless steel grating platform is widely used in various factories and engineering projects at home and abroad. Generally, there are two kinds of manufacturing methods, one is the combination spot welding of stainless steel flat steel and stainless steel round steel; Two kinds of stainless steel flat steel and stainless steel flat steel plug-in production. It has strong anti-corrosion performance, clean appearance and ideal decoration effect, but the general price is high.
Advantage of the stainless steel bar grating
1. Material saving: it is a way to save materials under the same load conditions, which can correspondingly reduce the materials of the supporting structure.
2. Simple construction: the pre installed support is clamped with bolts or fixed with stainless steel bar grating installation clamps, and one person can complete the work.
3. Save time: stainless steel bar grating does not need to be reprocessed on site, and the installation is very fast.
4. Durable: after acid or polishing anti-corrosion treatment before delivery, the stainless steel bar grating has strong impact and heavy pressure resistance.
5. Modern style: the appearance is beautiful, the design is standard, the ventilation is transparent, and the overall smooth modern feeling is given. 6. Light structure: less materials, light structure and easy to lift.
7. Anti Dirt: no rain, snow and dust, and anti-skid.
8. Simple design: no small support beam, simple structure and simplified design; There is no need to design the detailed drawing of steel grating, only the model can be indicated, and the manufacturer can design the layout drawing on behalf of the customer.

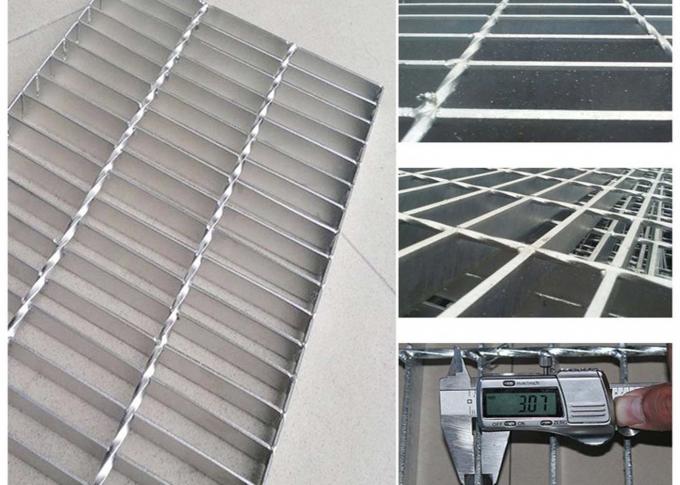

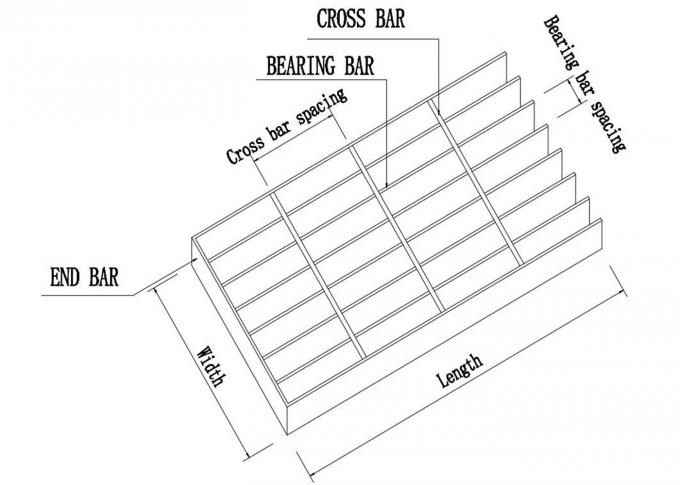

Stainless steel bar grating drawing

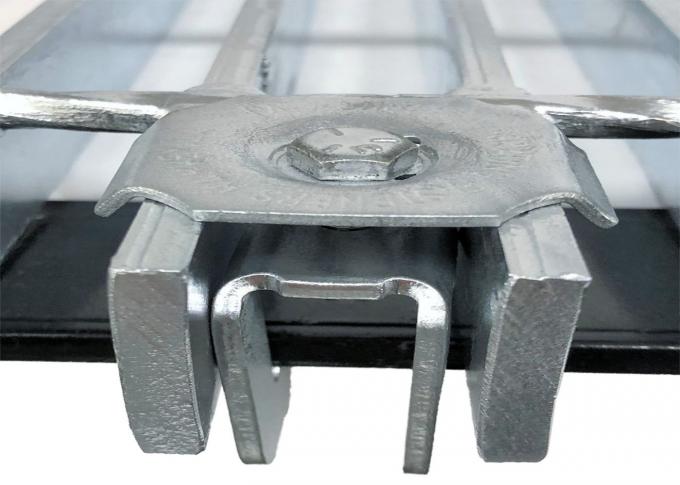

Stainless steel bar grating fastener
Specification of the stainles steel bar grating
| Product Name | steel grating,walkway steel grating,building materials steel bar grating,galvanized steel grid |
| Material Standard | Stainless steel |
| Bearing Bar (width*thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; |
| I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc | |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface treatment | pickling |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Packing | packed on the pallets,Other special package :according to customers' requirements. |
| Remarks: Other sizes also can be customized according to customers’ requirement. | |

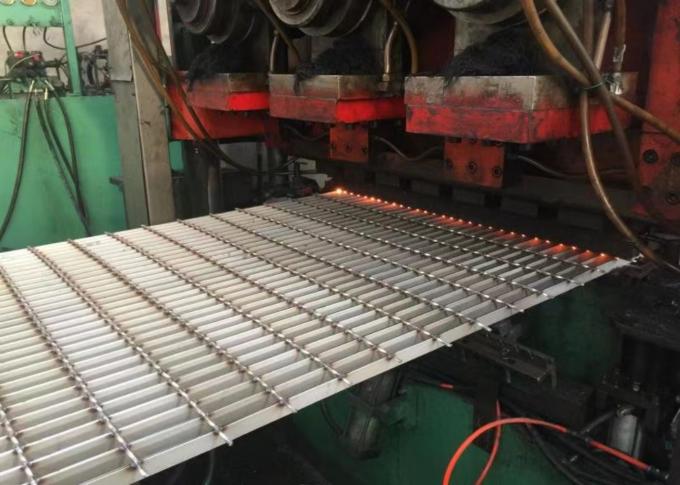

Hot dipped galvanized steel bar grating welding machine

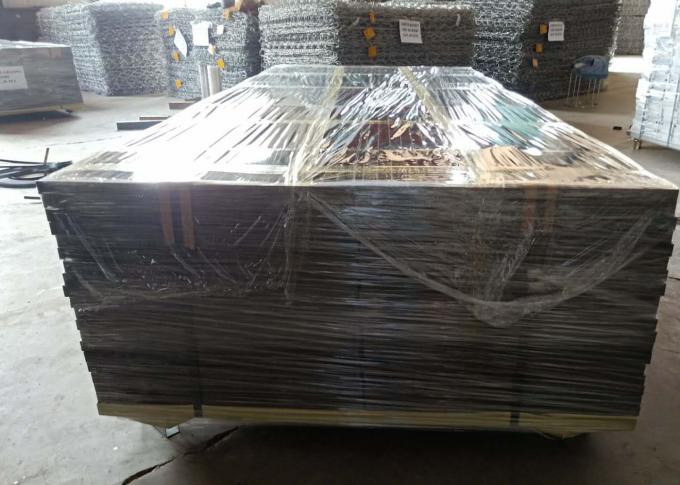

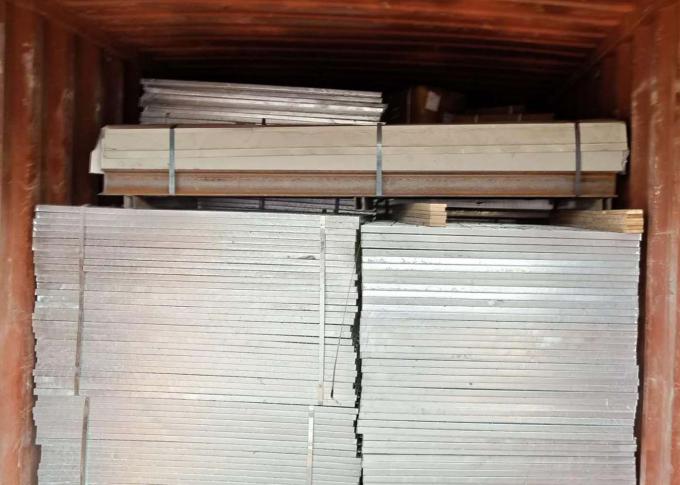

Package of the Galvanized grating
