With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | xingebin |
| Certification: | ISO9001 |
| Model Number: | R-GGB |
| Minimum Order Quantity: | 300 M2 |
|---|---|
| Price: | USD25-50/M2 |
| Packaging Details: | pallet or in bulk |
| Delivery Time: | 5-10days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200M2/DAY |
| Product Name: | Serrated Steel Bar Grating | Material: | Low Carbon Steel(Q235) Or Stainless Steel |
|---|---|---|---|
| Surface Treatment: | Hot Dipped Galvanized,painted | Application: | Floor,Walkway,Industrial Platform,bridge,Deck Platform |
| Standard: | ANSI/NAAMM-MBG531, CUSTOMIZED MADE | Type: | Serrated, Plate, I Shape |
| Thickness: | 3mm/5mm, 6mm, 10mm | Sample: | Free |
| Color: | Silver, Custormized | ||
| High Light: | Serrated Carbon Steel Bar Grating,Steel Bar Grating Anti Skid,Steel Serrated Bar Grating |
||

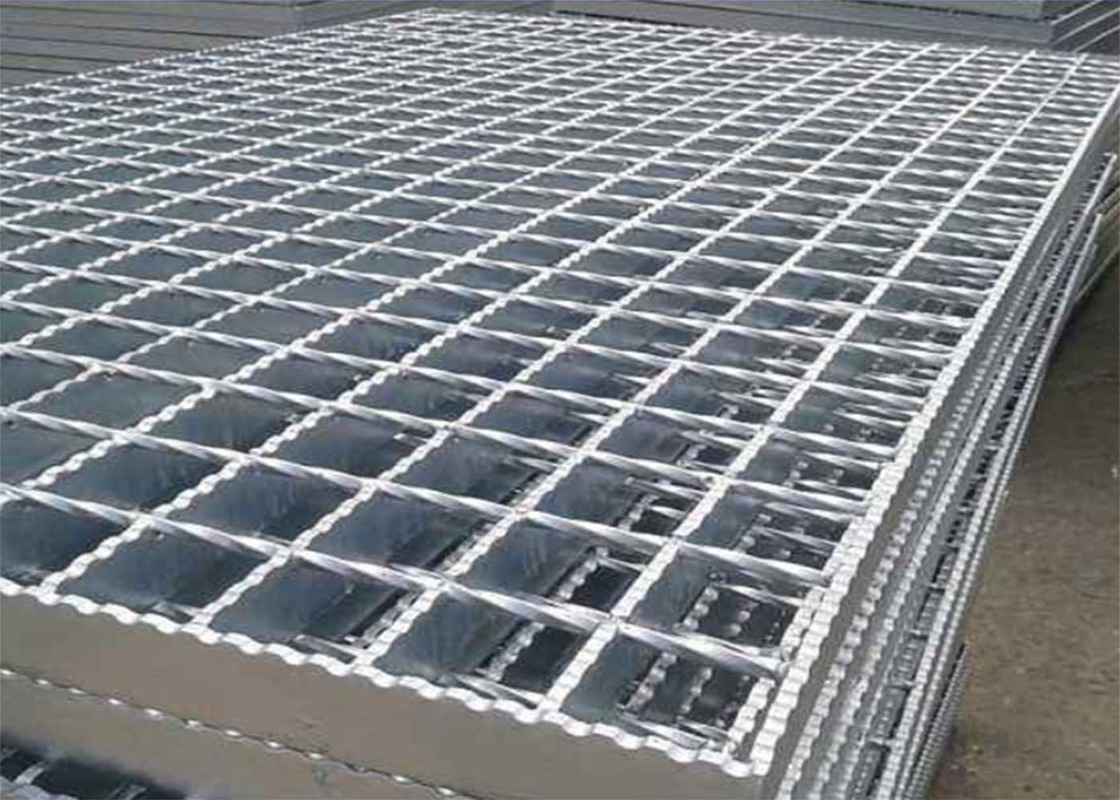

Serrated Steel Bar Grating Drain Grill Grating For Floor Grating,Drain , Trench And Ship
Serrated steel bar grating introduction
The anti-skid steel grating is made of flat steel and fried dough twist steel by welding, one side of the flat steel is serrated, which can play an anti-skid effec
In addition to all the features and uses of ordinary steel grating, serrated steel bar grating also has strong anti-skid function, especially suitable for wet and greasy places, such as offshore oil production platforms.
The Serrated steel bar grating adopts hot-dip galvanizing surface treatment, which has strong rust resistance and is free of maintenance and replacement for 30 years
.
Material of the serrated steel bar grating
The material is generally Q235. The common models are generally 253 255 303 305 323 325 403 404 405 503 505 605 705 and other specifications. One side of the flat steel has uneven tooth marks, mainly for anti-skid.
Application of Serrated steel grating
Serrated steel grating is mainly used for ditch cover plate, steel structure platform plate, steel ladder step plate, etc. cross bars are generally twisted square steel. Serrated steel grating is generally made of carbon steel, The surface is hot-dip galvanized, which can prevent oxidation. It can also be made of stainless steel. The serrated steel grating has the properties of ventilation, lighting, heat dissipation, friction and explosion-proof.
Main Specification of the serrated steel bar grating
Main Production:Platform Walkway Grating/Trench Cover Grating/Stock Black Steel Grating/Stair and Treads/Ball Joint Handrail and Stanchions and so on
Materials :Mild steel ASTM A36/Q235/S235/ SS316/SS304
Surface Treatment: Hot dip galvanized/painting/self-color
Size: Standard1000*1000mm,2000*1000mm 5800*1000mm,5850*1000mm,
6000*1000mm or Customized Size
Delivery:net 7-30 days
Payment:30% in advance and the ballance 70% before shipment
Quality:ISO 9001 certificated, Best factory price and Best Quality
| Products name | steel grating |
| Surface treatment | Hot Dipped Galvanized |
| Weld Way | Welded,Pressure-locked,Swage-locked |
| Material | Carbon Steel/Stainless Steel |
| Type | Serrated,Plain,I bar grating |
| Application | Deck Floor Tree Catwalk Driveway |
Structure of the metal grating
Material saving: The metal grating is the most economical way to bear the same load. Accordingly, the material of supporting structure can be reduced.
Reduce investment: save materials, labor, construction period and cleaning and maintenance.
Simple construction: fix the pre installed support with bolt clamp or welding, and one person can complete it.
Save time: The metal grating does not need to be reprocessed on site, and the installation is very fast.
Hot dipped galvanized steel bar grating type
Welded Grating
Economical design ideal for most industrial applications. Manufactured by welding the bearing and cross bar intersection, typically with automated forge welding equipment. Available in carbon and stainless steel.
Swage Locked Grating
Popular for the manufacture of aluminum, stainless steel, and close mesh gratings. Cross bars are inserted into pre-punched holes in the bearing bars and hydraulically deformed to lock the bars in place.
Dovetail Pressure Locked Grating
Assembled by inserting pre-punched bearing and cross bars into an “eggcrate” configuration and deforming the cross bars under intense hydraulic pressure. Available in all materials and ideal for architectural and ornamental applications.
Riveted Grating
Exceptionally durable grating manufactured by riveting bearing bars and bent connecting bars at their contact points. Excellent for applications involving impact loads and repetitive traffic patterns.
Hot dipped galvanized serrated steel bar grating drawing
Hot dipped galvanized serrated steel bar grating fastener
hot dipped galvanized steel bar grating welding machine
Package of the galvanized compound steel grating
