Galvanized Diamond Expanded Metal Mesh 3.0mm -8.0mm Thickness

Expanded Metal Diamond Mesh

Expanded metal diamond mesh can be used on various working platforms, such as tower crane platform, shipbuild etc

Expanded metal diamond mesh is designed for the safety of high-altitude workers when walking and has the effect of anti-skid and wear-resistant steel mesh.

Material of platform steel mesh: Q235 low carbon steel has high tensile strength and wear resistance

Thickness of platform steel mesh: 3.0-8.0mm

Surface treatment of Expanded metal diamond mesh:

Spraying epoxy antirust primer

hot galvanizing and electro galvanizing have good antirust effect and acid and alkaline resistance, and can withstand up to 50 years of wind and rain damage and ultraviolet radiation

Features of Expanded metal diamond mesh: the mesh surface is flat, the whole mesh is uniform rhombic mesh, no broken wire stem, large gravity bearing, high tensile strength, anti-skid, wear-resistant, light weight, convenient construction and simple maintenance.

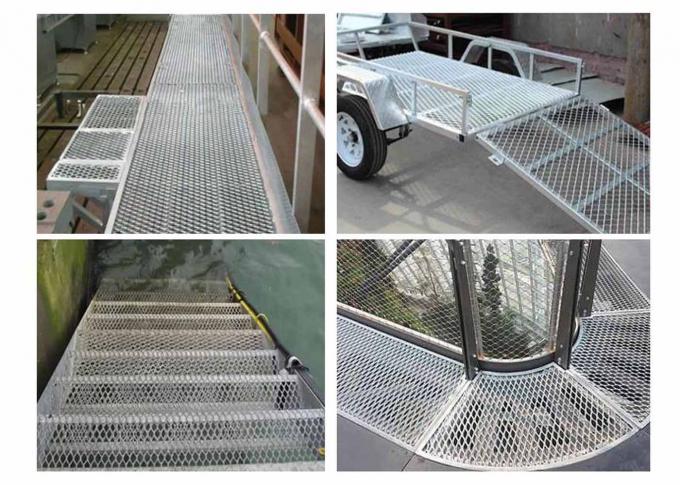

Use of Expanded metal diamond mesh: various high-altitude working platforms or workshop working platforms, such as tower crane platforms, ship manufacturing and repair platforms, power plant platforms, oil field working platforms, automobile manufacturing workshop working platforms, and heavy machinery working platforms

Specification of Expanded metal diamond mesh.

In our factory, we can make the expanded metal diamond mesh as your requirements.

Your can share the following information with us.

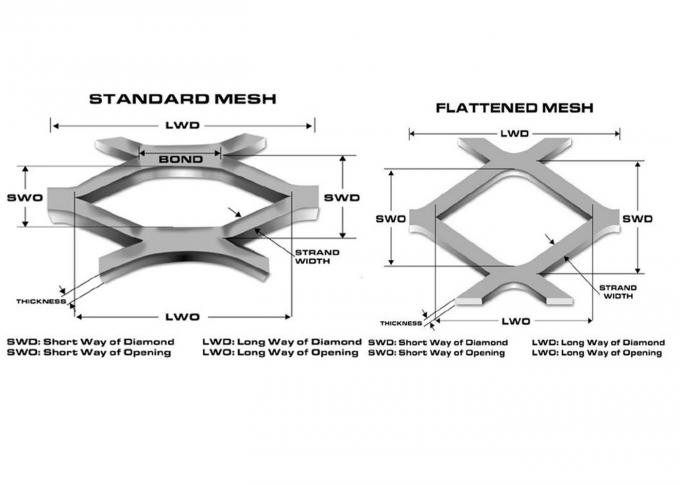

• Short pitch (SWM): The length of the short diamond diagonal from the node center to the node center.
• Long pitch (LWM): The length of the long diamond diagonal from the node center to the node center.
• Short pitch (inner hole) (SWD): the diagonal length of the short diamond hole (as shown in the figure)
• Long pitch (inner hole) (LWD): the diagonal length of the long diamond hole. (As shown in the figure)
• Strand: the edge of the rhombic hole of the steel mesh (as shown in the figure). The width of the stem is the length of the metal plate used to make a wire stem.
• Bond: the joint of two wire stems.
• Thickness: the thickness of the original steel plate.
• Roll: Steel mesh wound into rolls indicating specific length and width.
• Mesh: steel mesh indicating specific length and width

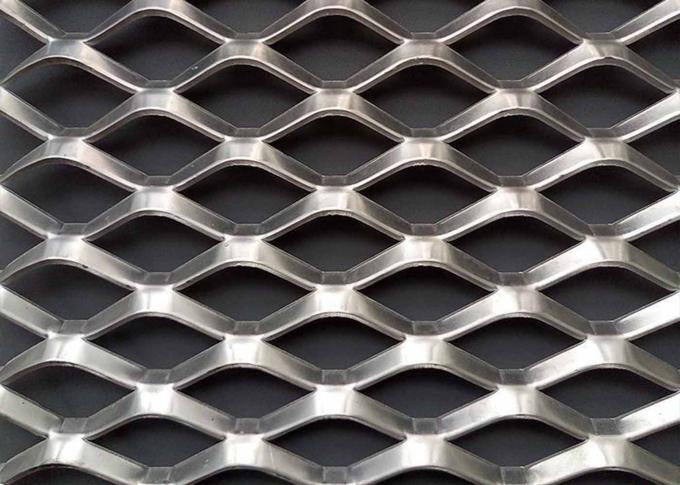

Following is one common expanded metal diamond mesh

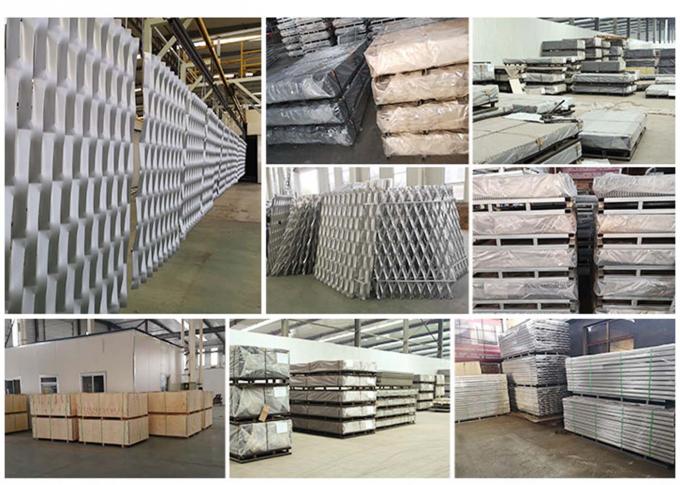

Package of the expanded metal diamond mesh

Our Services:

1. OEM is accepted: customized items based on your demands

2. Good service: we always treat you as friends and try best to meet our requirements

3. Good quantity: we have highly-strict quality control system on our manual work, each cage is made by our worker’s hand.

4. Fast & cheap delivery: we have our own long-term shipping partners and will choose the best line for you.

5. We are specializing in servicing the European and Asian markets.

6. Our production lead time is depended on specific sizes and quantity.
