Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings

Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings

  • Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings
  • Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings
  • Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings
  • Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings
  • Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings
Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings
Product Details:
Place of Origin: CHINA
Brand Name: XINGEBIN
Certification: ISO9001
Model Number: R-GBW
Payment & Shipping Terms:
Minimum Order Quantity: 300 m2
Price: USD0.6-3.2/m2
Packaging Details: rolls
Delivery Time: 5-8 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400m2/day
Contact Now
Detailed Product Description
Material: Stainless Steel Application: Protecting Mesh, Filters, Screen, Fencing
Type: Expanded Mesh Technique: Perforated
Color: Silver, Red, Black Size: Customized
Thickness: Customized Packing: On Your Request
High Light:

Expanded Metal Diamond Mesh

,

ISO9001 Stainless Steel Expanded Mesh

Stainless Steel Expanded Metal Diamond Mesh As Catwalk Fence Floor Gratings Stainless Steel Hot Dipped Galvanized



Stainless Steel Expanded Metal Mesh

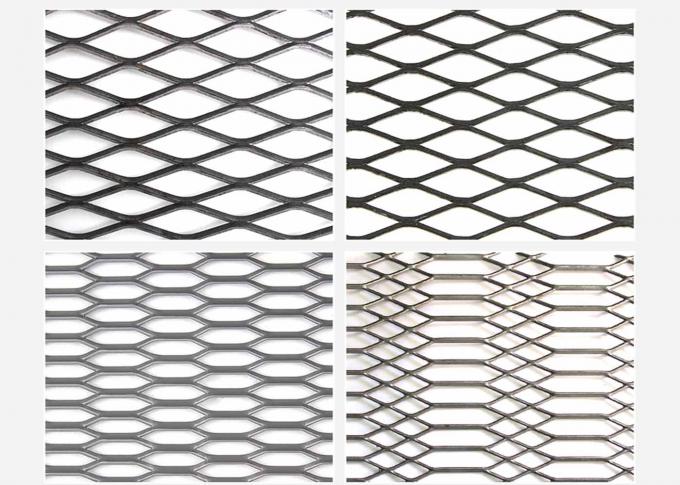

Introduction of Stainless Steel Expanded Metal Mesh

Stainless steel expanded metal mesh, also known as stainless steel stretch plate mesh, stainless steel expansion mesh, stainless steel flush drawing mesh, stainless steel stretch mesh



Material of the stainless steel expanded metal mesh

302 304 304L 316 316L



Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings 0

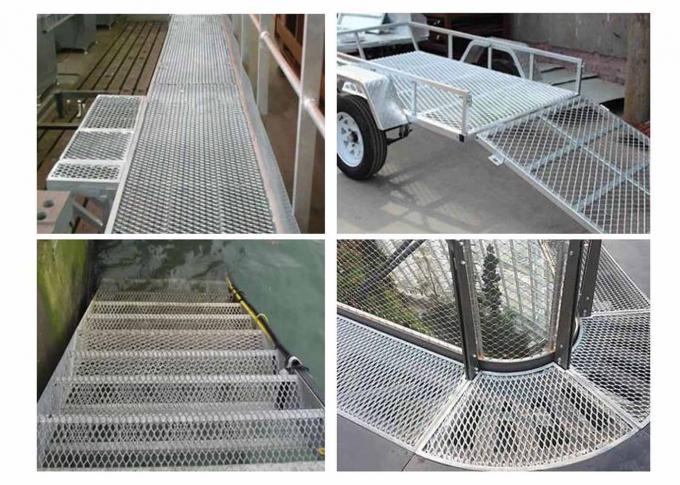

Application of stainless steel expanded metal mesh

Eescalators, passages, mines, locomotives, roads, municipal facilities, residential areas, as well as filter elements, medicine, paper making, filtering, packaging nets, mechanical facilities protection, handicraft manufacturing, high-grade speaker mesh cover, decoration, basket, basket and road protection, oil tanker pedal mesh, heavy machinery and boiler, oil mine wells, locomotives, 10000 ton ships and other working platforms, escalators, walkways.



Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings 1



Specification of Stainless steel expanded metal mesh.



In our factory, we can make the stainless steel expanded metal  mesh as your requirements.

Your can share the following information with us.



  • Short pitch (SWM): The length of the short diamond diagonal from the node center to the node center.
  • Long pitch (LWM): The length of the long diamond diagonal from the node center to the node center.
  • Short pitch (inner hole) (SWD): the diagonal length of the short diamond hole (as shown in the figure)
  • Long pitch (inner hole) (LWD): the diagonal length of the long diamond hole. (As shown in the figure)
  • Strand: the edge of the rhombic hole of the steel mesh (as shown in the figure). The width of the stem is the length of the metal plate used to make a wire stem.
  • Bond: the joint of two wire stems.
  • Thickness: the thickness of the original steel plate.
  • Roll: Steel mesh wound into rolls indicating specific length and width.
  • Mesh: steel mesh indicating specific length and width

Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings 2

Following is one common stainless steel expanded metal  mesh

Material

Aluminum,Stainless Steel, Low Carbon Aluminum,Low caron steel,

Galvanized steel,stainless steel,Copper, titanium etc

LWD MAX 300mm
SWD MAX 120mm
Stem 0.5mm-8mm
Sheet width MAX 3.4m
Thickness 0.5mm – 14mm





Surface treatment

- Without treatment is ok

- Anodized (colour can be customized)

- Powder coated

- PVDF

- Spray painted

- Galvanized : Electric galvanized, Hot-dipped galvanized



Advantages of Stainless steel expanded metal mesh:
Stable steel expanded metal mesh with even mesh, flat mesh surface and high friction coefficient
Stainless steel expanded metal mesh has high strength and bearing capacity.
Stainless steel expanded metal mesh is convenient for cutting and manufacturing workpieces
Stainless steel expanded metal mesh
Stainless steel expanded metal mesh



In addition to the stable steel expanded metal mesh, our factory can also produce other types of expanded metal mesh according to different requirements of customers, the material as following.

  • Aluminum
  • Stainless Steel
  • Low Carbon Aluminum
  • Low caron steel,
  • Galvanized steel
  • Copper
  • Titanium etc

Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings 3

Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings 4

Package of the expanded metal diamond mesh

Stainless Steel Expanded Metal Diamond Mesh For Floor Gratings 5



Our Services:

1. OEM is accepted: customized items based on your demands

2. Good service: we always treat you as friends and try best to meet our requirements

3. Good quantity: we have highly-strict quality control system on our manual work, each cage is made by our worker’s hand.

4. Fast & cheap delivery: we have our own long-term shipping partners and will choose the best line for you.

5. We are specializing in servicing the European and Asian markets.

6. Our production lead time is depended on specific sizes and quantity.
