| Place of Origin: | CHINA |
| Brand Name: | xingebin |
| Certification: | ISO9001 |
| Model Number: | R-RXFHW |
| Minimum Order Quantity: | 300 M2 |
|---|---|
| Price: | USD8-20/SQUARE METER |
| Packaging Details: | pallet or in bulk |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000M2/WEEK |
| Name: | Rock Fall Protection Barrier | Material: | Galvanized Wire Rope Or S.S Wire Rope |
|---|---|---|---|
| Color: | Silver Or Green | Hole Shape: | Diamond Shape |
| Type: | Rock Fall Protection Fencing | ISO 9001: | ISO 9001 |
| Feature: | Easy Installing | ||
| High Light: | Silver Rockfall Protection Netting,Green Rockfall Protection Netting,Rock Fall Protection Barrier |
||

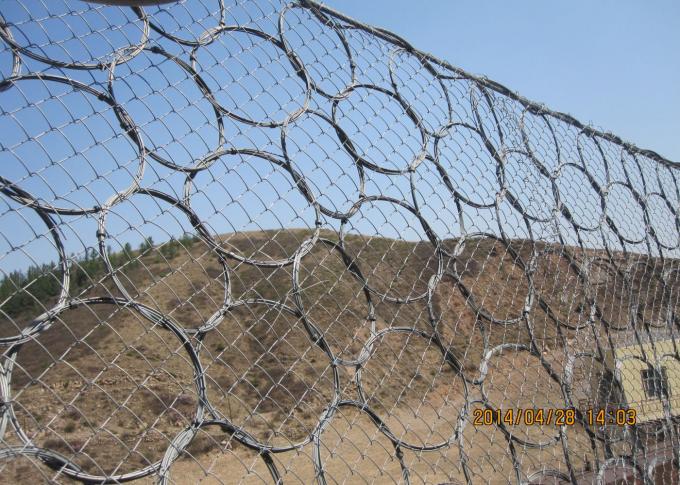

Good quality ring net for rockfall barriers system for 7 rings
Ring net for rockfall barriers material:hot dipped galvanized wire,zinc coated from 50g/m2-350g/m2
Ring net for rockfall barriers material:high strength steel wire,the strength from 500MPA-1770MPA.
Good quality ring net for rockfall barriers system for 7 rings
Ring net for rockfall barriers uses: it protect the formation of the regional slope, and prevent the collapse of the rock fall.It for the energy from 250kj to 3000kj, and has been able to 5000kj up to a higher level of special protection.
Good quality ring net for rockfall barriers system for 7 rings sheet
| Common ring network structure configuration and protection features (Consistent with Railway Industry Standard: TB / T 3089-2004 and "The People's Republic of China Communication Industry Standard: JT/T528-2004) |
|||
| Model | Grid | Configurations | Main protection |
| RXI-025 (Ring Network) | R5/3/300 | Supported by steel columns + rope + system + suture anchor rope | Wit RX-025 |
| RXI-050 (Ring Network) | R7/3/300 | With RX I-025 | RX-050 |
| RXI-075 (common-type ring network) | R7/3/300 | With RX-025 | RX-075 |
| RXI-100 (Ring Network) | R9/3/300 | With the RX-025 | Within the intercept falling rock impact can 1000kj |
| RXI-150 (Ring Network) | R12/3/300 | With RX-025 | Within the intercept falling rock impact can 1500kj |
| RXI-200 (Ring Network) | R19/3/300 | With RX-025 | Within the intercept falling rock impact can 2000kj |
|
Note: 1, the table models behind the figures represent the ring fence of the energy absorption capacity; such as "050" indicates that the maximum energy absorption capacity of the system 500kj, "150" indicates that the system maximum energy absorption capacity of 1500kj, and so on; 2, Ring network for more than flexible protection system "major components and characteristics of the" If your design does not fully consistent with the Department, the company can design according to your processing and manufacturing requirements; 3, product quality standards are in line with "The People's Republic of China Railway Industry Standard: TB / T 3089-2004 "and" The People's Republic of China Communication Industry Standard JT/T528-2004 "
|
|||
