CRB550 Concrete Wire Mesh Sheets Customized Acceptable ASTM / Australia standard

Product Details:

Place of Origin:	CHINA
Brand Name:	XINGEBIN
Certification:	ISO9001
Model Number:	R-DHW

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	USD2.3-3.5/SQUARE METER
Packaging Details:	IB BULK
Delivery Time:	7-10 DAYS
Supply Ability:	30TON/DAY

Contact Now

Detailed Product Description

Name:	Concrete Reinforcing Welded Wire Mesh	Color:	Black
Hole Size:	50MM-300MM	Material:	CRB550
Application:	Construction	Standard:	ASTM Or Australia Standard
Customized:	Acceptable
High Light:	CRB550 Concrete Wire Mesh , ASTM Concrete Wire Mesh Sheets , Concrete Welded Wire Mesh

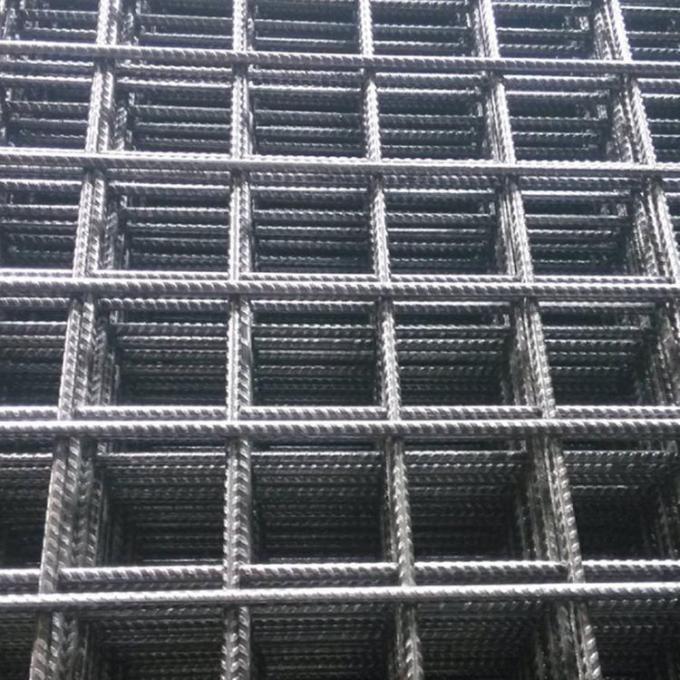

Concrete reinforcing welded wire mesh introduction:

Concrete reinforcement mesh is also known as welded reinforcement mesh and concrete reinforcing mesh.

Concrete reinforcement mesh is a mesh with longitudinal reinforcement and transverse reinforcement arranged at a certain distance and at right angles to each other, and all intersections are welded together.

CRB550 Concrete Wire Mesh Sheets Customized Acceptable ASTM / Australia standard 0

Material of the concrete reinforcing mesh:

The reinforcement mesh should be made of crb550 cold-rolled ribbed steel bar, or crb510 cold drawn smooth steel bar

CRB550 Concrete Wire Mesh Sheets Customized Acceptable ASTM / Australia standard 1

Specification of Concrete reinforcing welded wire mesh

WIPE DIAMETER	WIRES NUMBER		PITCH OF WIRES				SHEET DIMENSION				(SQM)		Edge wires		(kg) SHEET		(kg/SQM)
MESH SHEET
TYDE	LONG	CROSS		LONG	CROSS	LONG		CROSS	WIDTH	LENGTH	AREA			WEIGHT
Sqaure Mesh
SL52	4.77	4.77		10	30	200		200	2400	6000	14.40			20.000		1.4000
SL62	6.00	6		10	30	200		200	2400	6000	14.40	4x4.24@100		33.000		2.292
SL72	6.75	6.75		10	30	200		200	2400	6000	14.40	4x4.77@100		41.000		2.778
SL81	7.60	7.60		25	60	100		100	2400	6000	14.40	0		105.000		7.100
SL82	7.6	7.6		10	30	200		200	2400	6000	14.40	4X5.37@100		52.000		3.611
SL92	8.6	8.6		10	30	200		200	2400	6000	14.40	4x6.00 @100		66.000		4.514
SL102	9.5	9.5		10	30	200		200	2400	6000	14.40	4X6.75@100		80.000		5.556
SL63	6	6		6	30	300		300	2300	6000	13.80	4X4.00@100		21.000		1.594
SL53	4.77	4.77		6	20	300		300	2300	6000	13.80	4X4.00@100		15.000		1.000

Advantage of the Concrete reinforcement mesh

The concrete reinforcing mesh can greatly reduce the installation time of reinforcement, which is 50% - 70% less than that of binding mesh at the construction site.
Welded reinforcing mesh can reduce the occurrence of concrete cracks, because the spacing of reinforcement mesh is relatively dense, and the longitudinal and transverse wires of welded mesh form a network structure, which can play a bonding and anchoring role.
The point welding is firmed,

Concrete reinforcement welded wire mesh machine:

CRB550 Concrete Wire Mesh Sheets Customized Acceptable ASTM / Australia standard 2

concrete reinforcement welded wire mesh packing:

CRB550 Concrete Wire Mesh Sheets Customized Acceptable ASTM / Australia standard 3
