Custom Concrete Wire Mesh Welded Stainless Steel Welded Mesh

Product Details:

Place of Origin:	CHINA
Brand Name:	XINGEBIN
Certification:	ISO9001
Model Number:	R-DHW

Payment & Shipping Terms:

Minimum Order Quantity:	100 PCS
Price:	USD2.3-3.5/SQUARE METER
Packaging Details:	IB BULK
Delivery Time:	7-10 DAYS
Supply Ability:	30TON/DAY

Contact Now

Detailed Product Description

Name:	Welded Wire Concrete Mesh	Material:	CRB550
Color:	BLACK	Standard:	ASTM Or Australia Standard
Hole Size:	50MM-300MM	Application:	Construction
Customized:	Acceptable
High Light:	Custom Concrete Wire Mesh , Welded Concrete Wire Mesh , Concrete Reinforcing Welded Wire Mesh

Concrete reinforcing welded wire mesh introduction:

The reinforcement mesh is a mesh structure formed by electric welding of longitudinal and transverse reinforcement. The hole size of the reinforcement mesh can be adjusted according to the construction requirements.

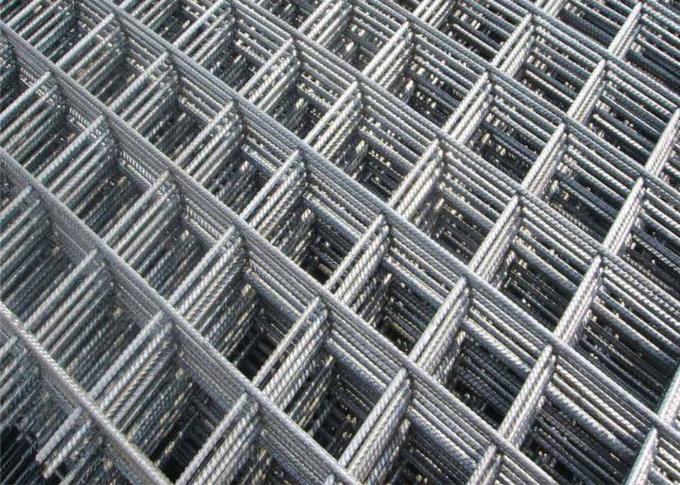

Custom Concrete Wire Mesh Welded Stainless Steel Welded Mesh 0

Material of the concrete reinforcing mesh:

The reinforcement mesh should be made of crb550 cold-rolled ribbed steel bar, or crb510 cold drawn smooth steel bar

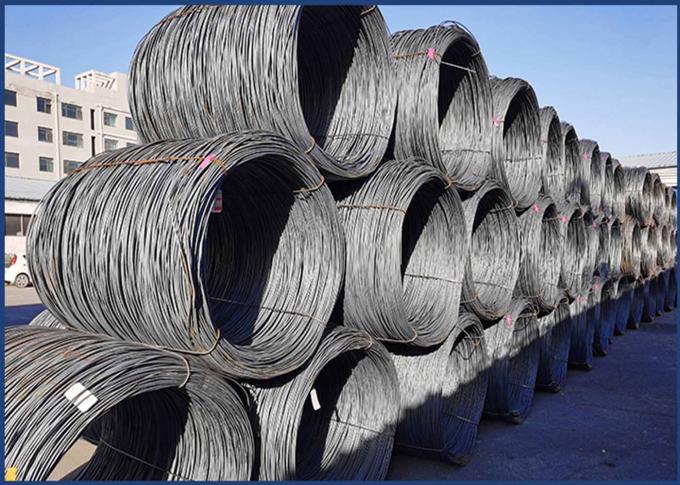

Custom Concrete Wire Mesh Welded Stainless Steel Welded Mesh 1

Customized is acceptable, in our factory, we can manufacture the Concrete welded wire mesh as customer’s requirements.

Main Market and Standard

Europe - ENV 10 080Great Britain - BS 4449 / Grade 460B

Germany - DIN 488 / Bst500

France - NF A 35-016 & 015 / FeE 500-3

Netherlands - NEN 6008 / FEB 500 HWL

Spain - UNE 36-068 EX 200 / B 500 SD

Ukraine - DSTU 3760 / A400 A500 A800 A1000

And all other major standards on request

Australian/New Zealand Standard -AS/NZS 4671:2001

Specification of Concrete reinforcing welded wire mesh

WIPE DIAMETER	WIRES NUMBER		PITCH OF WIRES				SHEET DIMENSION				(SQM)		Edge wires		(kg) SHEET		(kg/SQM)
MESH SHEET
TYDE	LONG	CROSS		LONG	CROSS	LONG		CROSS	WIDTH	LENGTH	AREA			WEIGHT
Sqaure Mesh
SL52	4.77	4.77		10	30	200		200	2400	6000	14.40			20.000		1.4000
SL62	6.00	6		10	30	200		200	2400	6000	14.40	4x4.24@100		33.000		2.292
SL72	6.75	6.75		10	30	200		200	2400	6000	14.40	4x4.77@100		41.000		2.778
SL81	7.60	7.60		25	60	100		100	2400	6000	14.40	0		105.000		7.100
SL82	7.6	7.6		10	30	200		200	2400	6000	14.40	4X5.37@100		52.000		3.611
SL92	8.6	8.6		10	30	200		200	2400	6000	14.40	4x6.00 @100		66.000		4.514
SL102	9.5	9.5		10	30	200		200	2400	6000	14.40	4X6.75@100		80.000		5.556
SL63	6	6		6	30	300		300	2300	6000	13.80	4X4.00@100		21.000		1.594
SL53	4.77	4.77		6	20	300		300	2300	6000	13.80	4X4.00@100		15.000		1.000

Advantage of the Concrete reinforcement mesh

The concrete reinforcing mesh can greatly reduce the installation time of reinforcement, which is 50% - 70% less than that of binding mesh at the construction site.
Welded reinforcing mesh can reduce the occurrence of concrete cracks, because the spacing of reinforcement mesh is relatively dense, and the longitudinal and transverse wires of welded mesh form a network structure, which can play a bonding and anchoring role.
The point welding is firmed,

Concrete reinforcement welded wire mesh machine:

Custom Concrete Wire Mesh Welded Stainless Steel Welded Mesh 2

concrete reinforcement welded wire mesh packing:

Custom Concrete Wire Mesh Welded Stainless Steel Welded Mesh 3

Company information:

Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.

Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.

Our Certification
ISO 9001 and ISO 14001-certification.

5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
