With science and technology as the cornerstone, quality as life.Gabion Welcome You!
 |
| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-DHW |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Price: | USD2.3-3.5/SQUARE METER |
| Packaging Details: | IB BULK |
| Delivery Time: | 7-10 DAYS |
| Supply Ability: | 30TON/DAY |
| Material: | CRB550 | Color: | BLACK |
|---|---|---|---|
| Hole Size: | 50MM-300MM | Name: | Welded Wire Mesh For Concrete |
| Mesh Sheet Width: | 0.5-2.4 M | Mesh Sheet Length: | 1-12 M |
| High Light: | SS Welded Wire Mesh,Steel Bar Welded Wire Mesh,Welded Wire Mesh Concrete Reinforcement |
||
Concrete Wire Mesh Ribbed Bar Welded Wire Mesh For Construction With ASTM Australia Standards SL82 Concrete Wire Mesh
Ribbed bar welded wire mesh introduction:
concrete reinforcement welded wire mesh is made up of reinforcing wires welded at the intersection spots, which does not disturb the structure of the metal. It's easier to move and laid in concrete, and the mesh still holds its shape. With the high strength and good stability, it's widely used for road reinforcement and concrete structure reinforcement in building.
Specifications of ribbed bar welded wire mesh
Material: carbon stee wire or stainless steel.
Surface treatment: black wire
Wire diameter: 4-12 mm.
Mesh sheet width: 0.5-2.4 m.
Mesh sheet length: 1-12 m.
Hole size:50mmx50mm;100mmx100mm;150mmx150mm;200mmx200mm
Most popular mesh sheet size: 2 m × 6 m, 2 m × 4 m, 2 m × 3 m.
Concrete reinforcement welded wire mesh standard:DIN488 GERMAN STANDARD;AS/NZS 4671:2001 Australia/New Zealand Standard;BS4483 BRITISH STANDARD
| WIPE DIAMETER | WIRES NUMBER | PITCH OF WIRES | SHEET DIMENSION | (SQM) |
Edge wires |
(kg) SHEET |
(kg/SQM)
|
|||||||||||||
| MESH SHEET | ||||||||||||||||||||
| TYDE | LONG | CROSS | LONG | CROSS | LONG | CROSS | WIDTH | LENGTH | AREA | WEIGHT | ||||||||||
| Sqaure Mesh | ||||||||||||||||||||
| SL52 | 4.77 | 4.77 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 20.000 | 1.4000 | |||||||||
| SL62 | 6.00 | 6 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4x4.24@100 | 33.000 | 2.292 | ||||||||
| SL72 | 6.75 | 6.75 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4x4.77@100 | 41.000 | 2.778 | ||||||||
| SL81 | 7.60 | 7.60 |
25
|
60 | 100 | 100 | 2400 | 6000 | 14.40 |
0
|
105.000 | 7.100 | ||||||||
| SL82 | 7.6 | 7.6 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4X5.37@100 | 52.000 | 3.611 | ||||||||
| SL92 | 8.6 | 8.6 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4x6.00 @100 | 66.000 | 4.514 | ||||||||
| SL102 | 9.5 | 9.5 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4X6.75@100 | 80.000 | 5.556 | ||||||||
| SL63 | 6 | 6 | 6 | 30 | 300 | 300 | 2300 | 6000 | 13.80 | 4X4.00@100 | 21.000 | 1.594 | ||||||||
| SL53 | 4.77 | 4.77 | 6 | 20 | 300 | 300 | 2300 | 6000 | 13.80 | 4X4.00@100 | 15.000 | 1.000 | ||||||||
Main Market and Standard of Ribbed bar welded wire mesh
Europe - ENV 10 080Great Britain - BS 4449 / Grade 460B
Germany - DIN 488 / Bst500
France - NF A 35-016 & 015 / FeE 500-3
Netherlands - NEN 6008 / FEB 500 HWL
Spain - UNE 36-068 EX 200 / B 500 SD
Ukraine - DSTU 3760 / A400 A500 A800 A1000
And all other major standards on request
Australian/New Zealand Standard -AS/NZS 4671:2001

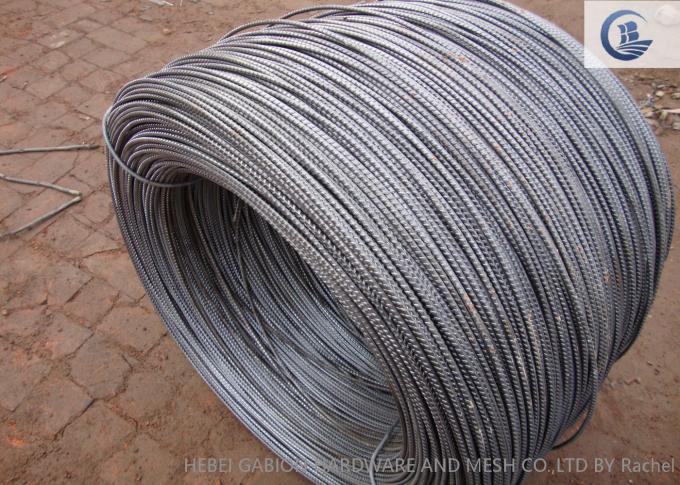

concrete reinforcement welded wire mesh materil picture:

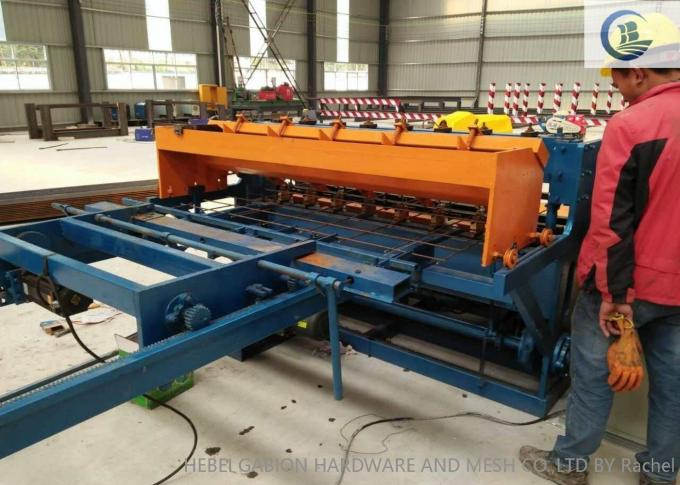

concrete reinforcement welded wire mesh machine:

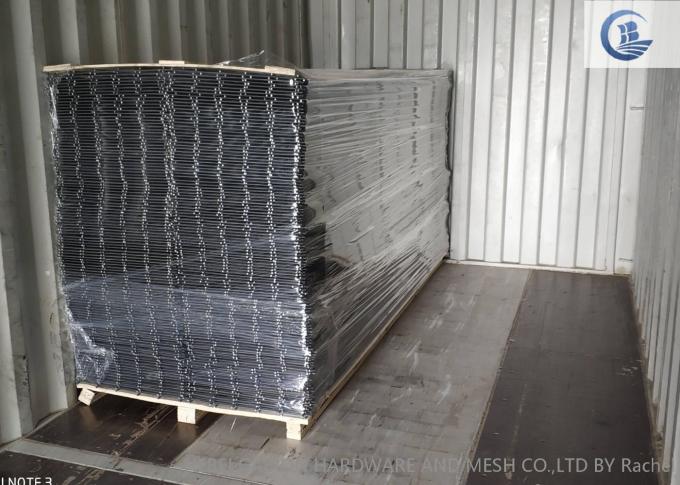

concrete reinforcement welded wire mesh packing:
Company information:
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
Cooperate with Us Today

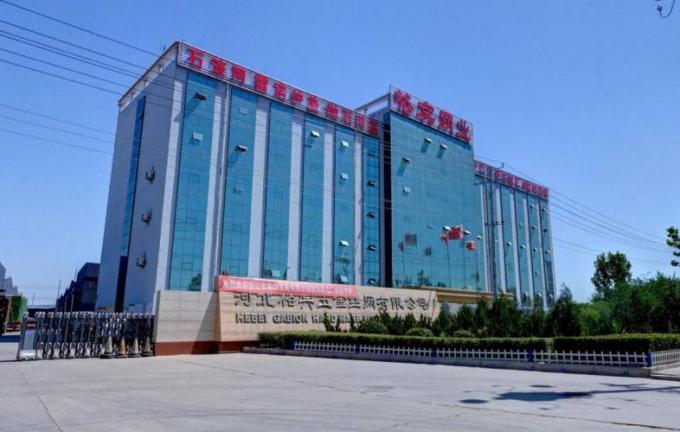

Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.
