Customized Steel Grating Special-Shpaed Grating Stainless Steel Trench Drain Grates For Floor, Plate, Stair, Walkway

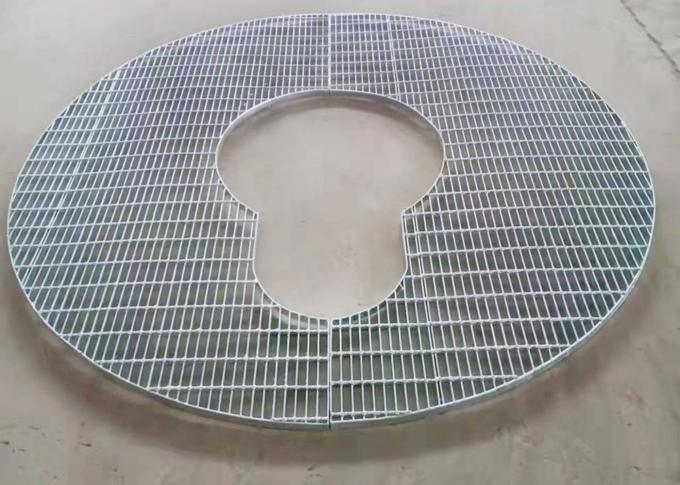

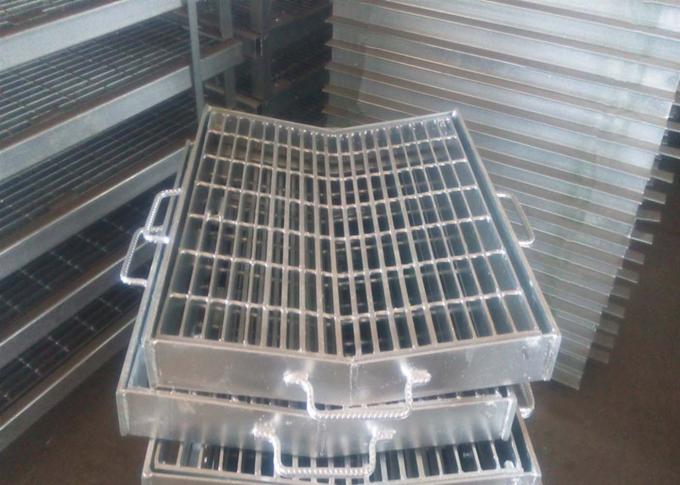

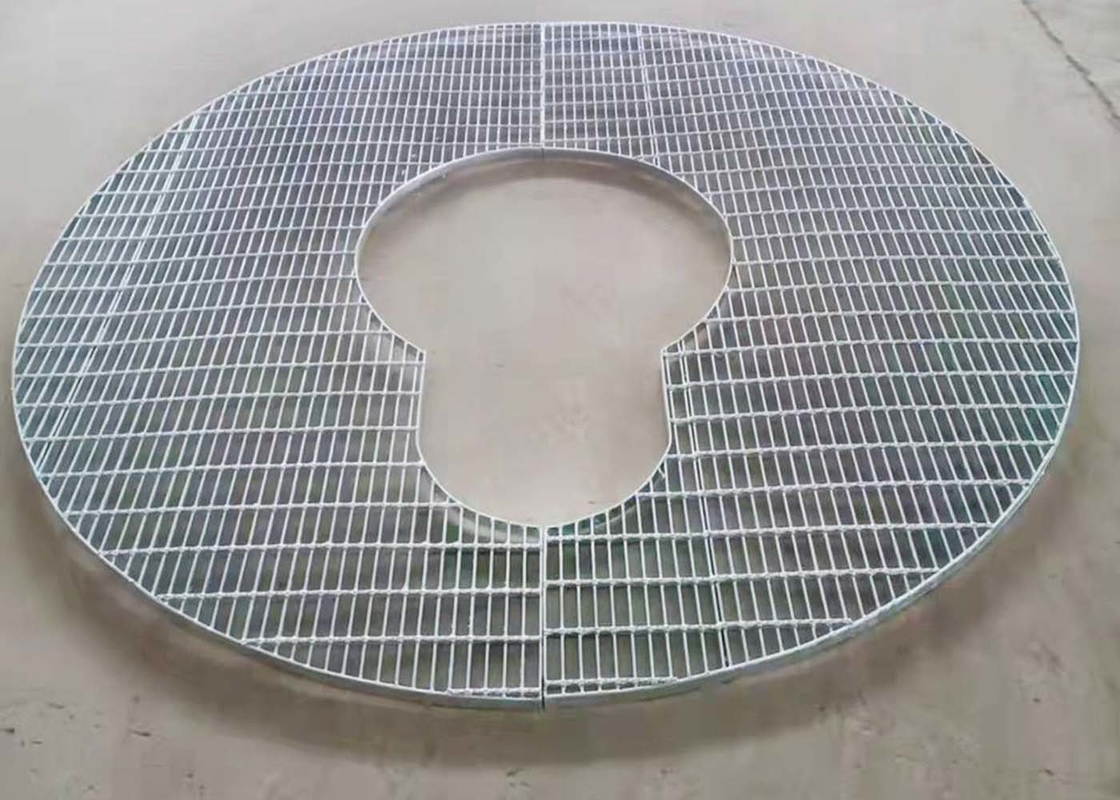

Customized steel grating
Customized steel grating is a special-shaped steel grating with different geometry and shape. This special steel grating is made according to the different needs of different customers with different designs. The use of special steel grating can effectively speed up the progress and efficiency of construction, thus avoiding the secondary cutting processing of the project.
The customized steel grating is a kind of irregular steel grating. The shape is irregular, such as fan-shaped. It is composed of several circular, angle missing and trapezoidal steel gratings through cutting, drilling, welding and edging to meet the customer's requirements.
The special-shaped steel grating is generally made of carbon steel, and the surface is hot-dip galvanized, which can prevent oxidation. It can also be made of stainless steel. The steel grating has the properties of ventilation, lighting, heat dissipation, anti-skid and explosion-proof.
The material of the customized steel grating
The welded metal bar grating is generally made of carbon steel, and the surface is hot-dip galvanized, which can prevent oxidation. It can also be made of stainless steel. The steel grating has the properties of ventilation, lighting, heat dissipation, anti-skid and explosion-proof.
Another is stainless steel grating, which is much more expensive than conventional galvanized steel grating. It is generally used in food factories, kitchen drainage, pharmaceutical factories and other areas with high anti-corrosion requirements
Structure of the customized steel grating

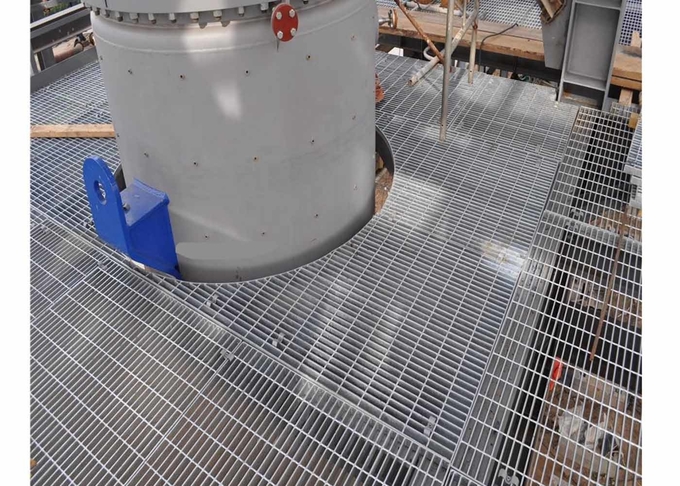

Application of the customized steel grating
Due to its wide range of applications, including ships, power plants, industrial plants and street drain covers, the grating has become a necessary product for the maintenance of life heavy infrastructure.
Hot dipped galvanized steel bar grating drawing
Hot dipped galvanized steel bar grating fastener
Specification of the welded serrated stell grating
| Product Name | steel grating,walkway steel grating,building materials steel bar grating,galvanized steel grid |
| Material Standard | Stainless steel, Low carbon steel, etc. |
| Bearing Bar (width*thickness) | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; |
| I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc | |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| Surface treatment | untreated(black), hot-dipped galvanized ,powder coated,painting or as per customers’ requirement. |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Packing | packed on the pallets,Other special package :according to customers' requirements. |
| Remarks: Other sizes also can be customized according to customers’ requirement. | |
Hot dipped galvanized steel bar grating welding machine
Package of the Galvanized grating
