|Place of Origin:||China|
|Brand Name:||New gabion|
|Certification:||ISO 9001, ISO 14001|
|Minimum Order Quantity:||100M|
|Packaging Details:||Pallet or bulk|
|Delivery Time:||within 15 days after receiving deposit|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 tons per day|

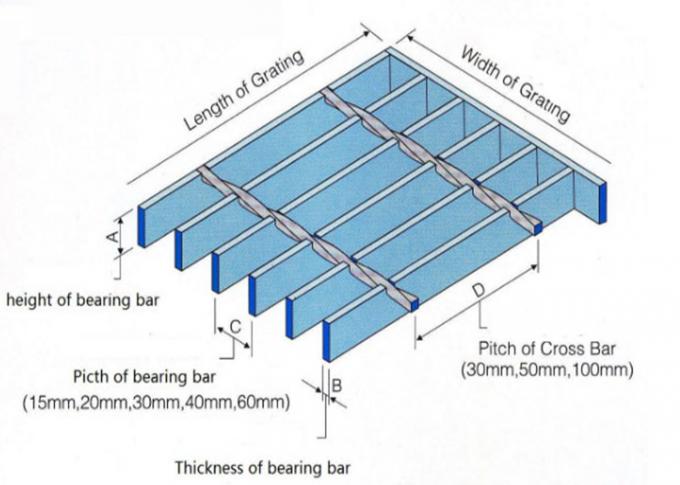

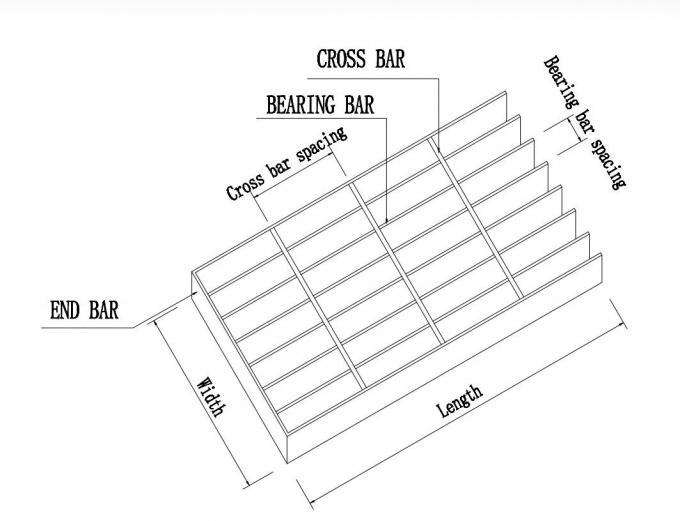

|Bearing Bar Type:||Plain,Serrated,I-shape||Cross Bar Size:||5x5mm,6x6mm,8x8mm|
|Bearing Bar Spacing:||25mm,30mm,40mm,50mm,60mm||Cross Bar Pitch:||30, 38, 50, 76, 100mm Etc. With 50, 100mm Recommended|
|Surface Treatment:||Hot-dip Galvanizing,Powder Coated||Grating Width:||1000mm, 2000mm, 3000mm, 6000mm|
|Cross Bar Type:||Twisted,Round,Flat||Bearing Bar Pitch:||15-30mm, 40mm, 60mm, 80mm, 90mm Etc. With 30, 40mm Recommended.|
|Material:||Q235, Stainless Steel||Installation:||Easy|
|Application:||Step, Vessel, Chemical Plant|

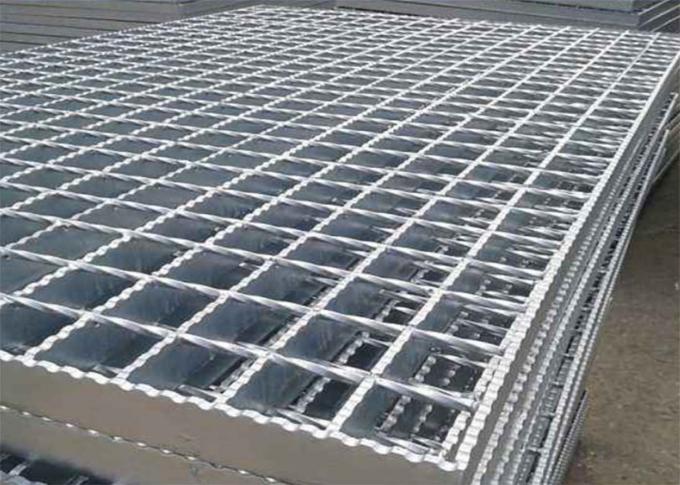

Steel Bar Grating is a metal grating primarily made of Q235 or stainless steel, which is widely used for industrial and commercial purposes. It features a bearing bar size that ranges from 20x3mm, 25x3mm, 30x3mm, 30x5mm, 32x5mm, 40x5mm, and 50x5mm. The grating thickness is available in 2mm, 3mm, 4mm, 5mm, and 6mm. The grating width comes in 1000mm, 2000mm, 3000mm, and 6000mm. It is available in two colors: silver and black. The bearing bars include 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, and 65x5, making it an ideal choice for drain grills.
|Grating Thickness||2mm, 3mm, 4mm, 5mm, 6mm|
|Surface Treatment||Hot-dip Galvanizing, Powder Coated|
|Grating Width||1000mm, 2000mm, 3000mm, 6000mm|
|Bearing Bar||25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5|
|Bearing Bar Type||Plain, Serrated, I-shape|
|Cross Bar Type||Twisted, Round, Flat|
|Bearing Bar Pitch||15-30mm, 40mm, 60mm, 80mm, 90mm Etc. With 30, 40mm Recommended.|
|Material||Q235, Stainless Steel|
|Bearing Bar Size||20x3mm, 25x3mm, 30x3mm, 30x5mm, 32x5mm, 40x5mm, 50x5mm|

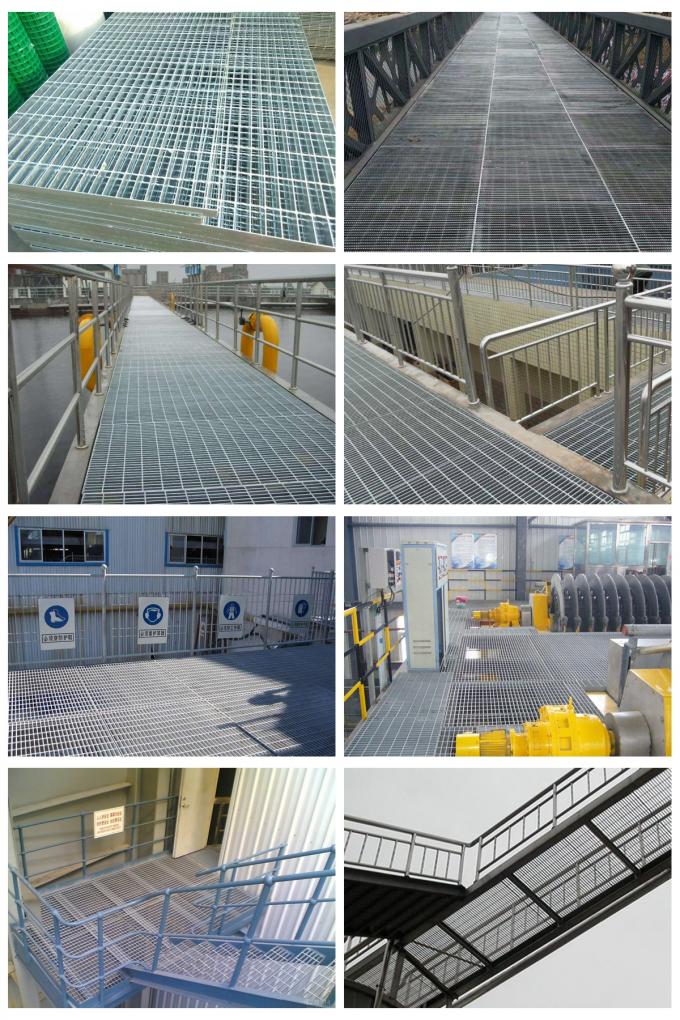

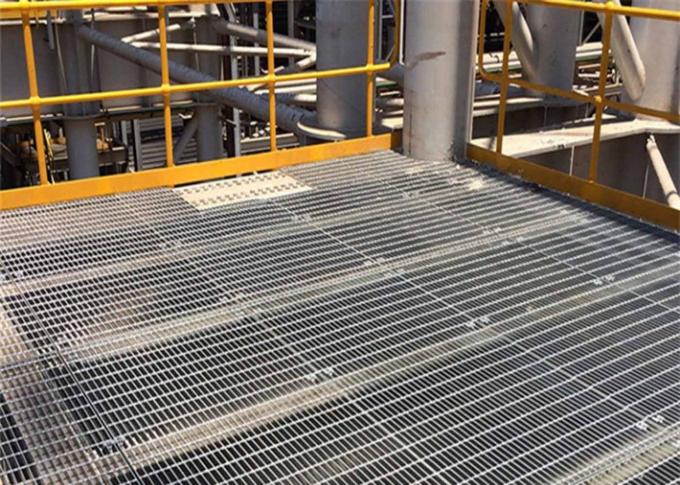

Steel Bar Grating is widely used in the industrial area for different applications and is recognized for its high strength, lightweight, and corrosion resistance. It is the perfect product for highly corrosive environments and can be used to provide a non-slip surface for walkways, platforms, and other areas where safety is a concern. New gabion's Steel Bar Grating is manufactured with a high-quality stainless steel material with a durable construction and superior corrosion resistance. It has a model number G-1888 and meets the ISO 9001 and ISO 14001 standards. It is available in different sizes, with 20x3mm, 25x3mm, 30x3mm, 30x5mm, 32x5mm, 40x5mm, 50x5mm being the most common sizes. The bearing bar pitch can be 30, 38, 50, 76, and 100mm, with 50 and 100mm being the most recommended. The cross bar type is available in twisted, round, and flat types while the color is available in silver or black. The minimum order quantity is 100M and it is generally delivered within 15 days after receiving deposit. The payment terms are T/T or L/C and the supply ability is 5 tons per day. Steel Bar Grating is the perfect product for providing a safe, durable, and cost-effective solution for walkways, platforms, and other areas where safety is a concern.
Steel Bar Grating is the perfect solution for any application where drainage, stability, and durability are a priority. It is used for drain grills, storm drains, and other applications that require strength and durability. New gabion's steel grating is designed with high-quality materials and meets the ISO 9001, ISO 14001 certifications. It is available in a wide variety of sizes and configurations to meet your needs, including bearing bar pitch, bearing bar spacing, bearing bar size, grating thickness, and more.
Our Steel Bar Grating is available in 15-30mm, 40mm, 60mm, 80mm, 90mm pitch, with 30, 40mm pitch being recommended. The bearing bar spacing is available in 25mm, 30mm, 40mm, 50mm, 60mm. Bearing bar sizes include 20x3mm, 25x3mm, 30x3mm, 30x5mm, 32x5mm, 40x5mm, 50x5mm, and 65x5mm. Grating thicknesses range from 2mm, 3mm, 4mm, 5mm, 6mm.
Minimum order quantity is 100M, and delivery is within 15 days after receiving deposit. Payment terms are T/T, L/C, and we can provide 5 tons per day of supply ability. Packaging is available in pallet or bulk.
Steel Bar Grating Packaging and Shipping:

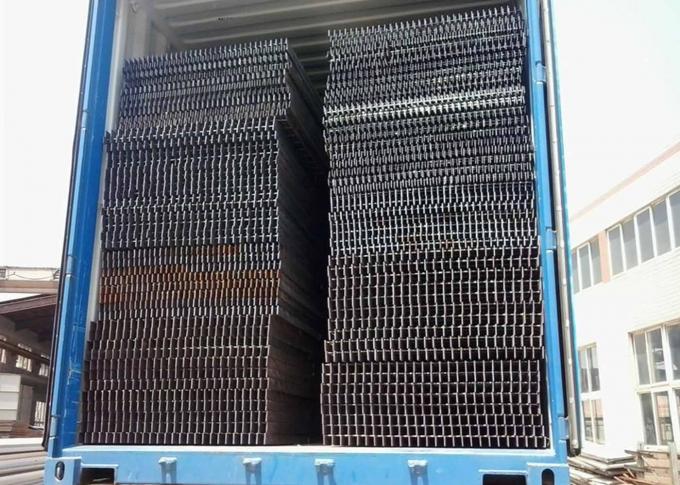

Our steel bar grating is packaged and shipped in bundles of 10-12 pieces and strapped to a pallet or skid. The pallet is then shrink wrapped to keep it secure during transit. Depending on the size of the order, it may be shipped as a full truckload or a partial truckload. We can also provide LTL (Less Than Truckload) shipments for smaller orders.
