Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets

Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets

  • Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets
  • Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets
  • Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets
  • Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets
Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets
Product Details:
Place of Origin: CHINA
Brand Name: XINGEBIN
Certification: ISO9001
Model Number: R-FBQ
Payment & Shipping Terms:
Minimum Order Quantity: 50 SETS
Price: USD32-80/SET
Packaging Details: PALLET OR BULK
Delivery Time: 5-8 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100SET/DAY
Contact Now
Detailed Product Description
MATERIAL: HOT DIPPED GALVANIZED WIRE OR GALFAN WIRE HOLE SIZE:: 3"X3"
GEOTEXTILE WEIGHT:: 250G-600G/M2 SURFACE TREATMENT: Hot Dipped Galvanized
APPLICATION: Military And Flood PACKAGE:: Pallet
High Light:

Military Hesco Barriers

,

Military Hesco Barriers 4.0mm

,

Easy Install Hesco Gabion Baskets

Hesco bastion barrier basket

What is Hesco bastion barrier basket ?

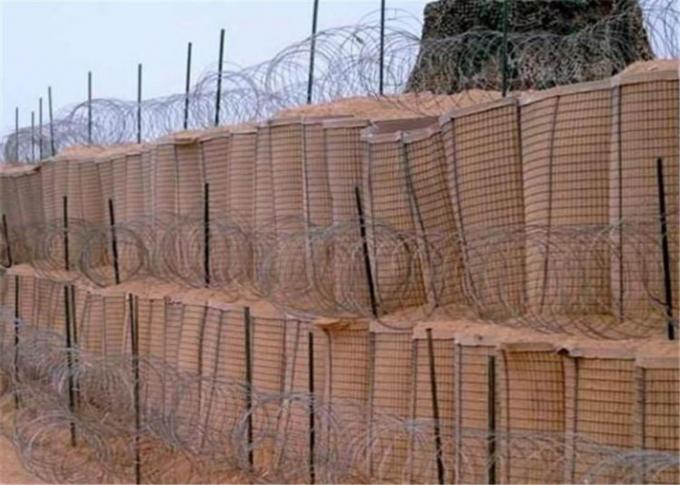

Hesco bastion barrier basket is also called hesco defensive barrier basket, which can be used as an important defense product in military exercises and wars. When used, stones, sand or soil are loaded into the cage to form a solid protective wall.

Because it is easy to install,it is widely used in modern Wars!



Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets 0



The production process of Hesco bastion barrier basket.



The Hesco defensive barrier is made of hot dipped galvanized wire, first the galvanized wire is welded as a sheet of mesh, with different holes.



Second put the geotextile in the gabion and sew the together with the gabion, the Hesco defensive barrier is finished.



Third, when the defensive barrier basket is complete, it will be folded and packed.



Forth, put the defensive barrier basket on the ground, unfolded and connect with the pin as requirements, to make the wall with different length.



Fifth, the defensive barrier is filled with stone and sand.



Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets 1



The advantages of Hesco defensive barrier:



1. It is easy to delivery, because the Hesco defensive barrier basket can be fold, it is easy to pack and delivery to save the freight.

2. It is easy to install, there will be two person to install the Hesco defensive barrier basket, to unfold and connect the basket easily.

3. To protection the environment, the Hesco defensive barrier basket can be reused.







Specification of Hesco barrier gabion.



Customized is acceptable in our factory, we can make the gabion as customer’s requirements, following is the standard gabion size.



Military hesco barrier bastion detail sheet:




Unit

Height

Width

Length

Mil 10B
Mil 10G

7'
(2.12m)

5'
(1.52m)

95'
(03.5m)

Mil 9B
Mil 9G

3' 3"
(1.0m)

2' 6"
(0.76m)

30'
(9.14m)

Mil 8B
Mil 8G

4' 6"
(1.37m)

2'
(1.22m)

32'
(10m)

Mil 7B
Mil 7G

7' 3"
(2.21m)

7'
(2.13m)

90'
(27.74m)

Mil 6B
Mil 6G

5' 6"
(1.68m)

2'
(0.61m)

10'
(3.05m)

Mil 5B
Mil 5G

2'
(0.61m)

2'
(0.61m)

10'
(13.05m)

Mil 4B
Mil 4G

2'
(0.61m)

5'
(1.5m)

32'
(10m)

Mil 3B
Mil 3G

3' 3"
(1.0m)

3' 3"
(1.0m)

32'
(10m)

Mil 2B
Mil 2G

2'
(0.61m)

2'
(0.61m)

4'
(1.21m)

Mil 1B
Mil 1G

4' 6"
(1.37m)

3' 6"
(1.06m)

32'
(10m)



WIRE DIAMETER:  4.0MM, 4.5MM, 5.0MM



MESH OPENING:  75MMX75MM, 100MMX100MM



WIRE MATERIAL:  HOT DIP GALVANIZED WIRE, ZINC-ALUMINUM COATED WIRE



GEOTEXTIL WEIGHT : 300G/M2, 250G/M2



GEOTEXTIL CLOUR:  BEIGE, GREEN, WHITE ETC.



Military hesco barrier bastion packing:



Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets 2



Company information:



Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.

Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.

Our Certification
ISO 9001 and ISO 14001-certification.

5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.

Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.

Defensive Military Hesco Barriers 4.0mm 4.5mm Easy Install Hesco Gabion Baskets 3
