Hesco Flood Barrier Wall Welded Gabion For Military And Flood With With UV-Resistant Treatment

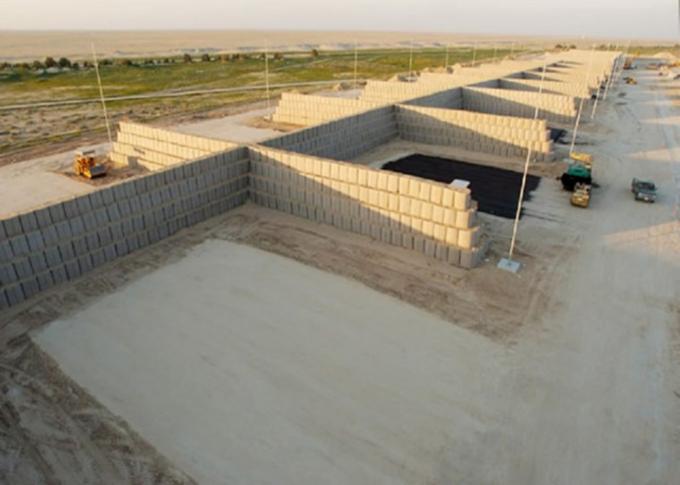

Hesco Flood barrier wall
HESCO Flood barrier wall is also called HESCO MIL wall, HESCO barrier gabion, HESCO flood wall, etc.

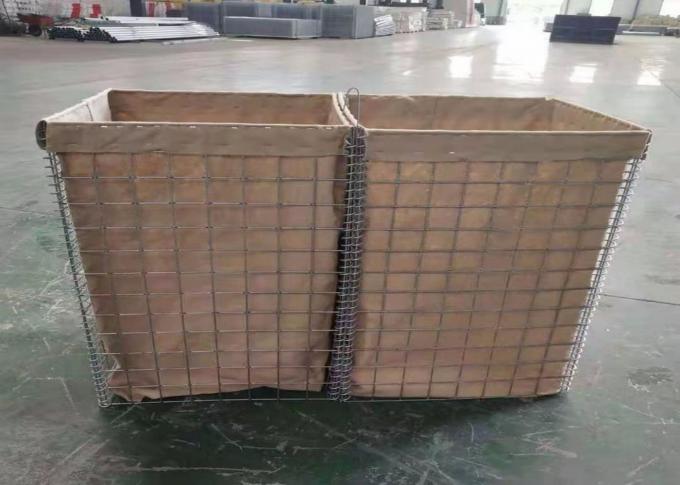

The material of HESCO barrier wall is galvanized wire or Galfan wire, The wire will be welded as a sheet of mesh, and then will be connected together by spiral binding wire to form a cage, which is lined with non-woven fabric.
Hesco barrier basket can be used separated or several gabion nets can be connected together. The gabion nets are filled with stones or sand, and then assembled and stacked into a retaining wall like structure for use.
The Hesco defensive barrier can be used to stop the flood.
This is the most economical solution on the market to achieve significant flood barrier height. It is also our most common solution in adapting to harsh ground conditions and challenging footprint problems. If we stop a lot of water under violent conditions, this option is our first choice!
Features of Hesco flood barrier gabion me:
Hesco flood barrier is adopted modular design, and each unit can be used together or separately.
Hesco flood barrier is collapsible, storage and logistics are particularly convenient
The filling materials of Hesco flood barrier can be collected locally, both sand and stone can be used
Hesco flood barrier can be constructed according to the construction terrain without restriction.
Hesco flood barrier modular design can be composed according to requirements, and the length and height can be determined according to needs.
Hesco flood barrier can be reused.
Specification of Hesco barrier gabion.
Customized is acceptable in our factory, we can make the gabion as customer’s requirements, following is the standard gabion size.
Hesco flood barrier bastion detail sheet:
Unit |
Height |
Width |
Length |
Mil 10B Mil 10G |
7' (2.12m) |
5' (1.52m) |
95' (03.5m) |
Mil 9B Mil 9G |
3' 3" (1.0m) |
2' 6" (0.76m) |
30' (9.14m) |
Mil 8B Mil 8G |
4' 6" (1.37m) |
2' (1.22m) |
32' (10m) |
Mil 7B Mil 7G |
7' 3" (2.21m) |
7' (2.13m) |
90' (27.74m) |
Mil 6B Mil 6G |
5' 6" (1.68m) |
2' (0.61m) |
10' (3.05m) |
Mil 5B Mil 5G |
2' (0.61m) |
2' (0.61m) |
10' (13.05m) |
Mil 4B Mil 4G |
2' (0.61m) |
5' (1.5m) |
32' (10m) |
Mil 3B Mil 3G |
3' 3" (1.0m) |
3' 3" (1.0m) |
32' (10m) |
Mil 2B Mil 2G |
2' (0.61m) |
2' (0.61m) |
4' (1.21m) |
Mil 1B Mil 1G |
4' 6" (1.37m) |
3' 6" (1.06m) |
32' (10m) |
WIRE DIAMETER: 4.0MM, 4.5MM, 5.0MM
MESH OPENING: 75MMX75MM, 100MMX100MM
WIRE MATERIAL: HOT DIP GALVANIZED WIRE, ZINC-ALUMINUM COATED WIRE
GEOTEXTIL WEIGHT : 300G/M2, 250G/M2
GEOTEXTIL CLOUR: BEIGE, GREEN, WHITE ETC.

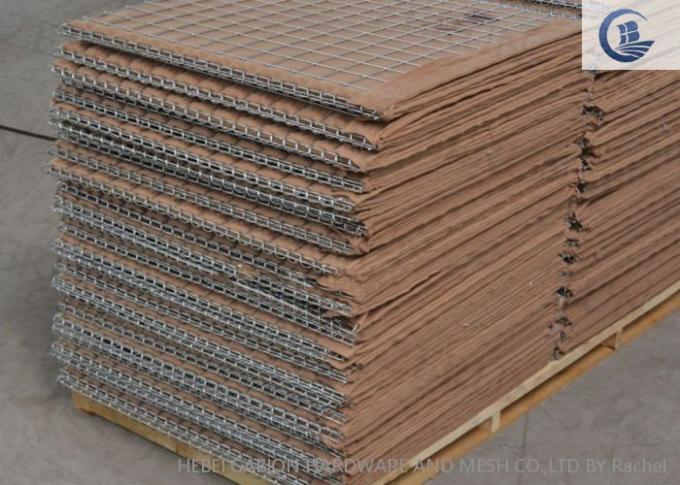

Hesco flood barrier bastion packing:
