| Place of Origin: | CHINA |
| Brand Name: | XINGEBIN |
| Certification: | ISO9001 |
| Model Number: | R-FBQ |
| Minimum Order Quantity: | 50 SETS |
|---|---|
| Price: | USD32-80/SET |
| Packaging Details: | PALLET OR BULK |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100SET/DAY |
| MATERIAL: | HOT DIPPED GALVANIZED WIRE OR GALFAN WIRE | HOLE SIZE:: | 3"X3" |
|---|---|---|---|
| GEOTEXTILE WEIGHT:: | 250G-600G/M2 | SURFACE TR EATMENT: | Hot Dipped Galvanized |
| SIZE: | Customized | APPLICATION: | Flood Protection Fence, Military Fence |
| High Light: | Hesco Blast Wall,Hesco Barrier Retaining Wall,Hesco Mil |
||
Hesco Barrier Bastion Mil1-Mil10 As Flood Fence Or Military Fence
Military hesco barrier bastion introduction:
military hesco barrier also named as Hesco fence, Hesco defense wall, Hesco blast wall, sand cage, welded gabion box, defense blast wall for military use, wire mesh gabion box, stone cage.
Structures and Characters: The Hesco barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells joint together.

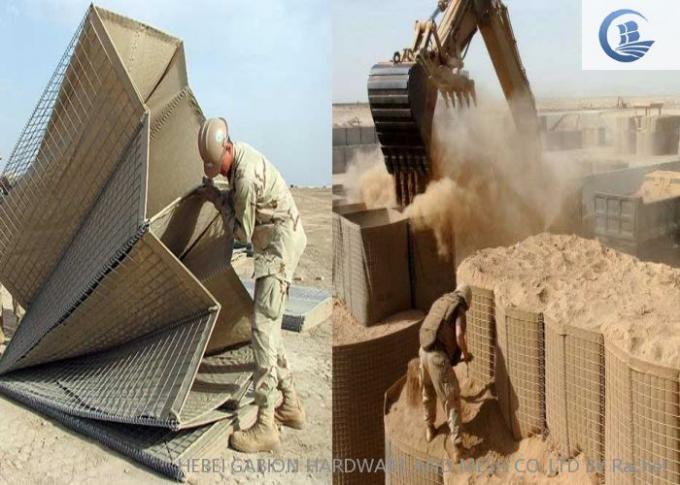

Assembling the Hesco bastion entails unfolding it and fills it with sand, dirt or gravel. The main advantage of Hesco barriers, strongly contributing to their popularity with troops and flood fighters, is the quick and easy setup. Previously, people had to fill sandbags, a slow undertaking, with one worker filling about 20 sandbags per hour. Workers use Hesco barriers and a front end loader can do ten times the work of those using sandbags.
Finish: Electro galvanized, hot-dipped galvanized, Galfan coated.
Specifications :
1) wire diameter: 3mm-5mm
2) hole: 2''x2'', 3''x3'', 4''x4''
3) Hesco size: 0.61x0.61m, 1.06x1.37m, 2.13x2.21m, other sizes can be produced as requested.
4) Geotextile: In non-woven geotextile, color can be white, beige-sand color.
Military hesco barrier bastion detail sheet:
Unit |
Height |
Width |
Length |
Mil 10B Mil 10G |
7' (2.12m) |
5' (1.52m) |
95' (03.5m) |
Mil 9B Mil 9G |
3' 3" (1.0m) |
2' 6" (0.76m) |
30' (9.14m) |
Mil 8B Mil 8G |
4' 6" (1.37m) |
2' (1.22m) |
32' (10m) |
Mil 7B Mil 7G |
7' 3" (2.21m) |
7' (2.13m) |
90' (27.74m) |
Mil 6B Mil 6G |
5' 6" (1.68m) |
2' (0.61m) |
10' (3.05m) |
Mil 5B Mil 5G |
2' (0.61m) |
2' (0.61m) |
10' (13.05m) |
Mil 4B Mil 4G |
2' (0.61m) |
5' (1.5m) |
32' (10m) |
Mil 3B Mil 3G |
3' 3" (1.0m) |
3' 3" (1.0m) |
32' (10m) |
Mil 2B Mil 2G |
2' (0.61m) |
2' (0.61m) |
4' (1.21m) |
Mil 1B Mil 1G |
4' 6" (1.37m) |
3' 6" (1.06m) |
32' (10m) |
Application of Hesco barrier
Hesco barrier is our most versatile product. In addition to stackable flood barriers, there are many applications.
They are indeed blocks full of soil. You can build a variety of structures, from flood walls, retaining walls and river banks to blast walls, bunkers and shooting ranges.
Hesco barrier advantage:
HESCO BASTION can be reused.
Military hesco barrier bastion packing:
Company information:
Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.
Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.
Our Certification
ISO 9001 and ISO 14001-certification.
5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.
