Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile

Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile

  • Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile
  • Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile
  • Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile
Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile
Product Details:
Place of Origin: CHINA
Brand Name: XINGEBIN
Certification: ISO9001
Model Number: R-FBQ
Payment & Shipping Terms:
Minimum Order Quantity: 50 SETS
Price: USD32-80/SET
Packaging Details: PALLET OR BULK
Delivery Time: 5-8 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100SET/DAY
Contact Now
Detailed Product Description
MATERIAL: HOT DIPPED GALVANIZED WIRE OR GALFAN WIRE HOLE SIZE:: 3"X3"
GEOTEXTILE WEIGHT:: 250G-600G/M2 APPLICATION: Military And Flood
SURFACE TREATMENT: Hot Dipped Galvanized PACKAGE:: Pallet
Color: Green Or Yellow
High Light:

Galvanized Hesco Defensive Barriers

,

Hesco Defensive Barriers 250g/M2

Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile Introduction



Hesco barrier, also know as Hesco bastion barrier,Hesco basket wall, defensive wall, welded gabion, sand cage and stone box ect.



Hesco barrier is for military and flood protection, it made of a welded gabion and lined high duty geotextile, the size of the welded gabion can be customized, and the geotextile with UV resistant treatment, min class 3 or equivalent, the color is military green or military yellow.



The Hesco barrier basket can be used separated, and it can be connect with pin to make a wall, the different length of the wall according to the requirements.

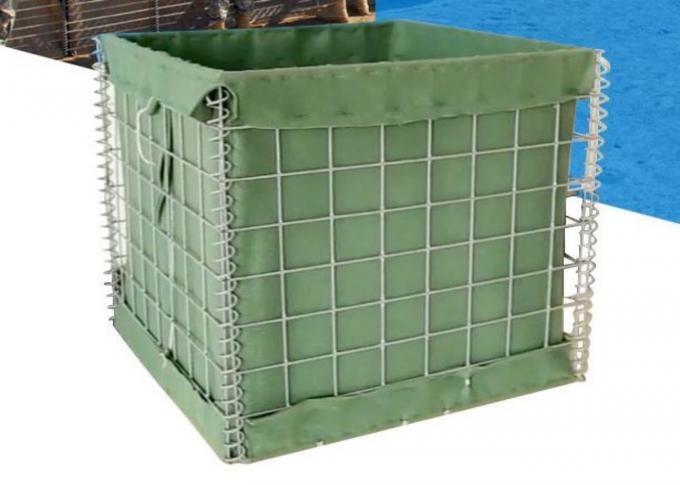

Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile 0



The advantages of Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile



1. Easy to handle and install, the Hesco barrier can be installed two person easily, only to put the Hesco barrier on the earth and unfolded it, if necessary connect one by one with the pin.



2. High strength and impact resistance, the material is low-carbon steel wire, welded together.



3. Long service life and normal use, the surface treatment is hot dipped galvanized.



4. It can be filled with sand, cement, stone and soil, It can be manually or mechanically, such as excavators, it will be quickly to make a Hesco defensive barrier wall.

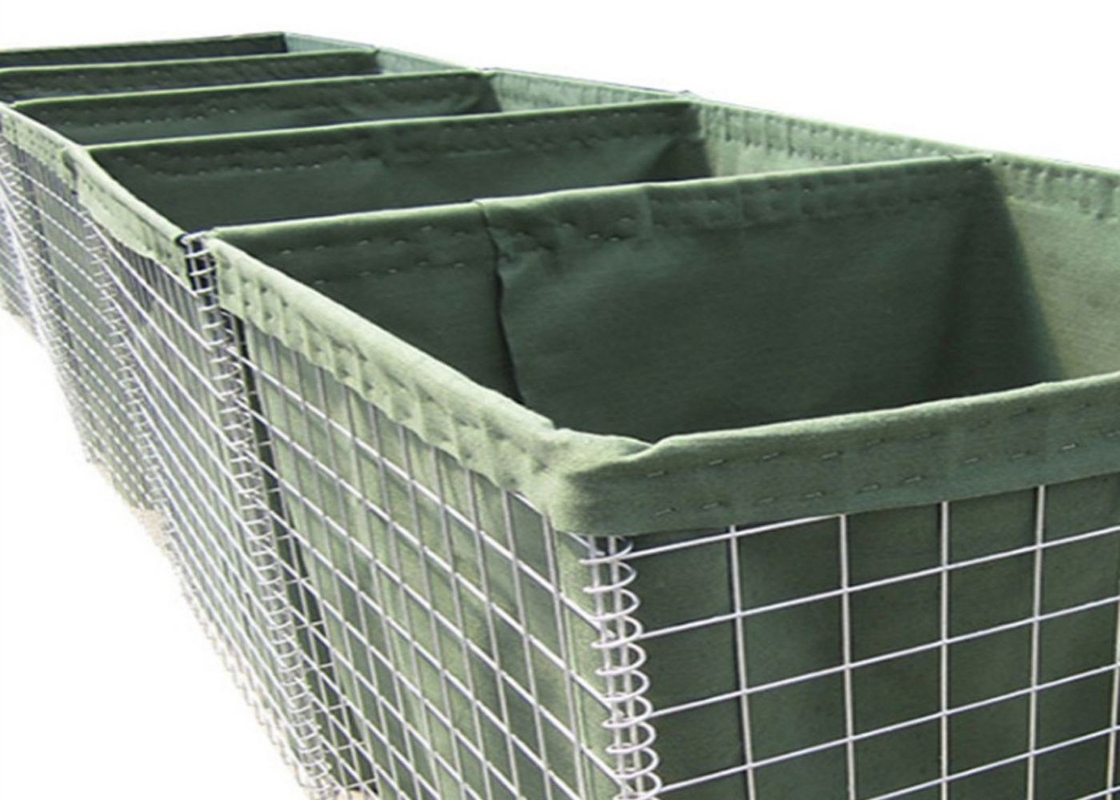

Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile 1





Specification of Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile



Customized is acceptable in our factory, we can make the gabion as customer’s requirements, following is the standard gabion size.



Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile sheet:


Unit

Height

Width

Length

Mil 10B
Mil 10G

7'
(2.12m)

5'
(1.52m)

95'
(03.5m)

Mil 9B
Mil 9G

3' 3"
(1.0m)

2' 6"
(0.76m)

30'
(9.14m)

Mil 8B
Mil 8G

4' 6"
(1.37m)

2'
(1.22m)

32'
(10m)

Mil 7B
Mil 7G

7' 3"
(2.21m)

7'
(2.13m)

90'
(27.74m)

Mil 6B
Mil 6G

5' 6"
(1.68m)

2'
(0.61m)

10'
(3.05m)

Mil 5B
Mil 5G

2'
(0.61m)

2'
(0.61m)

10'
(13.05m)

Mil 4B
Mil 4G

2'
(0.61m)

5'
(1.5m)

32'
(10m)

Mil 3B
Mil 3G

3' 3"
(1.0m)

3' 3"
(1.0m)

32'
(10m)

Mil 2B
Mil 2G

2'
(0.61m)

2'
(0.61m)

4'
(1.21m)

Mil 1B
Mil 1G

4' 6"
(1.37m)

3' 6"
(1.06m)

32'
(10m)



WIRE DIAMETER:  4.0MM, 4.5MM, 5.0MM



MESH OPENING:  75MMX75MM, 100MMX100MM



WIRE MATERIAL:  HOT DIP GALVANIZED WIRE, ZINC-ALUMINUM COATED WIRE



GEOTEXTIL WEIGHT : 300G/M2, 250G/M2



GEOTEXTIL CLOUR:  BEIGE, GREEN, WHITE ETC.

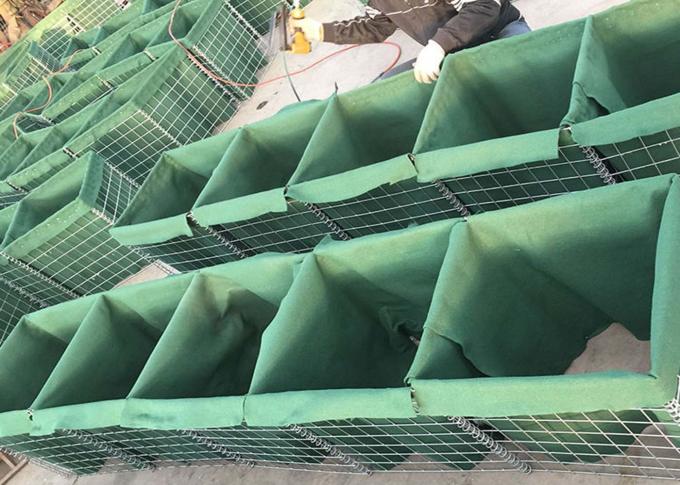

Hot dipped galvanized Hesco bastion barrier defensive wall with geotextile packing:



Hot Dipped Galvanized Hesco Defensive Barriers 250g/M2-600g/M2 With Geotextile 2
