Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood

Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood

  • Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood
  • Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood
  • Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood
Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood
Product Details:
Place of Origin: CHINA
Brand Name: XINGEBIN
Certification: ISO9001
Model Number: R-FBQ
Payment & Shipping Terms:
Minimum Order Quantity: 50 SETS
Price: USD32-80/SET
Packaging Details: PALLET OR BULK
Delivery Time: 5-8 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100SET/DAY
Contact Now
Detailed Product Description
MATERIAL: HOT DIPPED GALVANIZED WIRE OR GALFAN WIRE HOLE SIZE:: 3"X3"
GEOTEXTILE WEIGHT:: 250G-600G/M2 SURFACE TREATMENT: Hot Dipped Galvanized
APPLICATION: Military And Flood PACKAGE:: Pallet
Color: Green Or Yellow
High Light:

Hesco Bastion Barrier

,

Hesco Bastion Wall

,

Welded Gabion Mesh

Hesco bastion barrier wall



Hesco bastion barrier wall is defensive wall composed of some units of Hesco bastion barrier.



Hesco bastion barrier material:



Wire and spring are hot dipped galvanized wire, diameter of wire: 3mm-5mm

Geotextile: the geotexitle has UV protection function, the weight is about 250g/㎡-600g/㎡



Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood 0

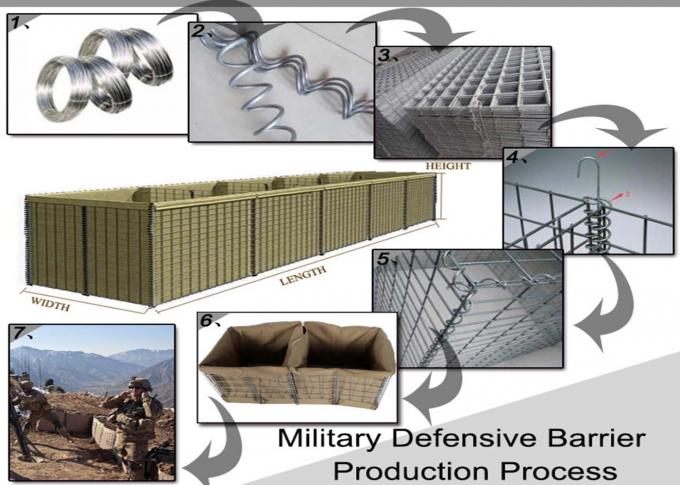

Production process of Hesco bastion barrier:

  • The hot dipped galvanized wire is welded together as a sheet of mesh with different holes.
  • The sheet of mesh will be connected together as a gabion by Spiral binding wire
  • Put the geotextile in the gabion and sewed together
  • Folded and packed

Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood 1



Stucture of the Hesco bastion barrier wall



The Hesco bastion barrier units can be used separated and it also can be used together, some units will be connected together with pin to make Hesco barrier wall, the length of the wall is different length that as different requirements.

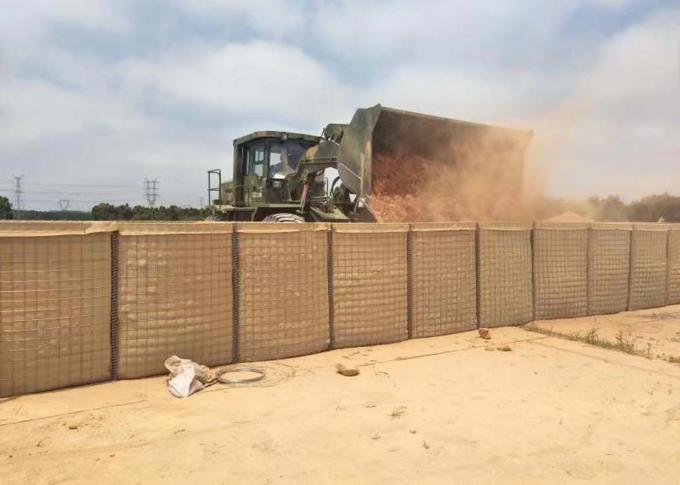

Application of the Hesco bastion barrier wall:



The wall of the Hesco bastion barrier can used in the military and flood protection.



Advantages of the Hesco bastion barrier wall:

  • The unit of hesco bastion barrier can be folded, it’s convenient to delivery.
  • The Hesco bastion barrier is very easy to install, the units of the Hesco bastion barrier basket will be put on the ground and connected with pin, and then filled.
  • The Hesco bastion barrier can be reused to protect the environment.



Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood 2







Specification of Hesco barrier gabion.



Customized is acceptable in our factory, we can make the gabion as customer’s requirements, following is the standard gabion size.



Military hesco barrier bastion detail sheet:




Unit

Height

Width

Length

Mil 10B
Mil 10G

7'
(2.12m)

5'
(1.52m)

95'
(03.5m)

Mil 9B
Mil 9G

3' 3"
(1.0m)

2' 6"
(0.76m)

30'
(9.14m)

Mil 8B
Mil 8G

4' 6"
(1.37m)

2'
(1.22m)

32'
(10m)

Mil 7B
Mil 7G

7' 3"
(2.21m)

7'
(2.13m)

90'
(27.74m)

Mil 6B
Mil 6G

5' 6"
(1.68m)

2'
(0.61m)

10'
(3.05m)

Mil 5B
Mil 5G

2'
(0.61m)

2'
(0.61m)

10'
(13.05m)

Mil 4B
Mil 4G

2'
(0.61m)

5'
(1.5m)

32'
(10m)

Mil 3B
Mil 3G

3' 3"
(1.0m)

3' 3"
(1.0m)

32'
(10m)

Mil 2B
Mil 2G

2'
(0.61m)

2'
(0.61m)

4'
(1.21m)

Mil 1B
Mil 1G

4' 6"
(1.37m)

3' 6"
(1.06m)

32'
(10m)



WIRE DIAMETER:  4.0MM, 4.5MM, 5.0MM



MESH OPENING:  75MMX75MM, 100MMX100MM



WIRE MATERIAL:  HOT DIP GALVANIZED WIRE, ZINC-ALUMINUM COATED WIRE



GEOTEXTIL WEIGHT : 300G/M2, 250G/M2



GEOTEXTIL CLOUR:  BEIGE, GREEN, WHITE ETC.

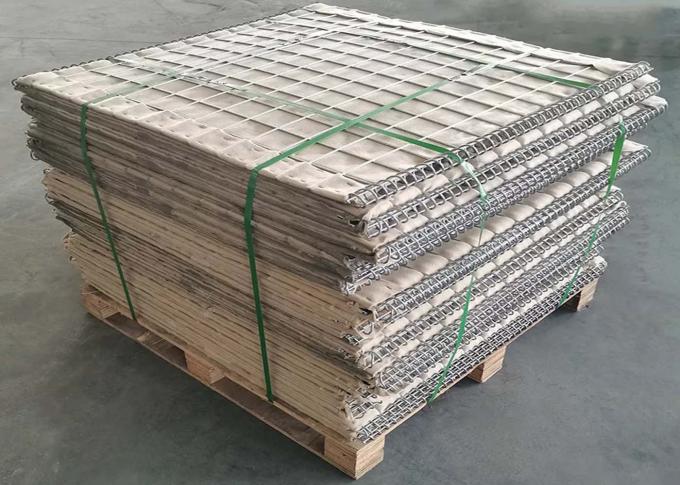

Military hesco barrier bastion packing:



Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood 3



Company information:



Long History, Full of Experience
our company was established in 2013. We have more than 20 years of experience of wire mesh.

Main Products
gabion, wire mesh, fence, welded wire mesh, hexagonal wire mesh, square wire mesh, expanded metal mesh, perforated metal mesh and stainless steel wire mesh, and other wire mesh items.

Our Certification
ISO 9001 and ISO 14001-certification.

5 production line
our factory covers 16,000 square meters, we have 5 production line, gabion production line, welded wire mesh production line, PVC coated wire line, steel bar grating line and geo-textile bag production line. If you have urgent order, please contact me.

Cooperate with Us Today
Hebei gabion hardware and mesh Co. Ltd is located in Anping, Hebei, China. Welcome you visit our factory! Contact us now.

Hesco Bastion Barrier Wall , Welded Gabion Mesh For Military / Flood 4
